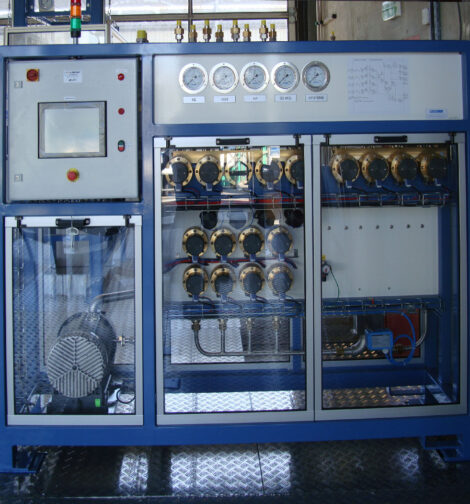

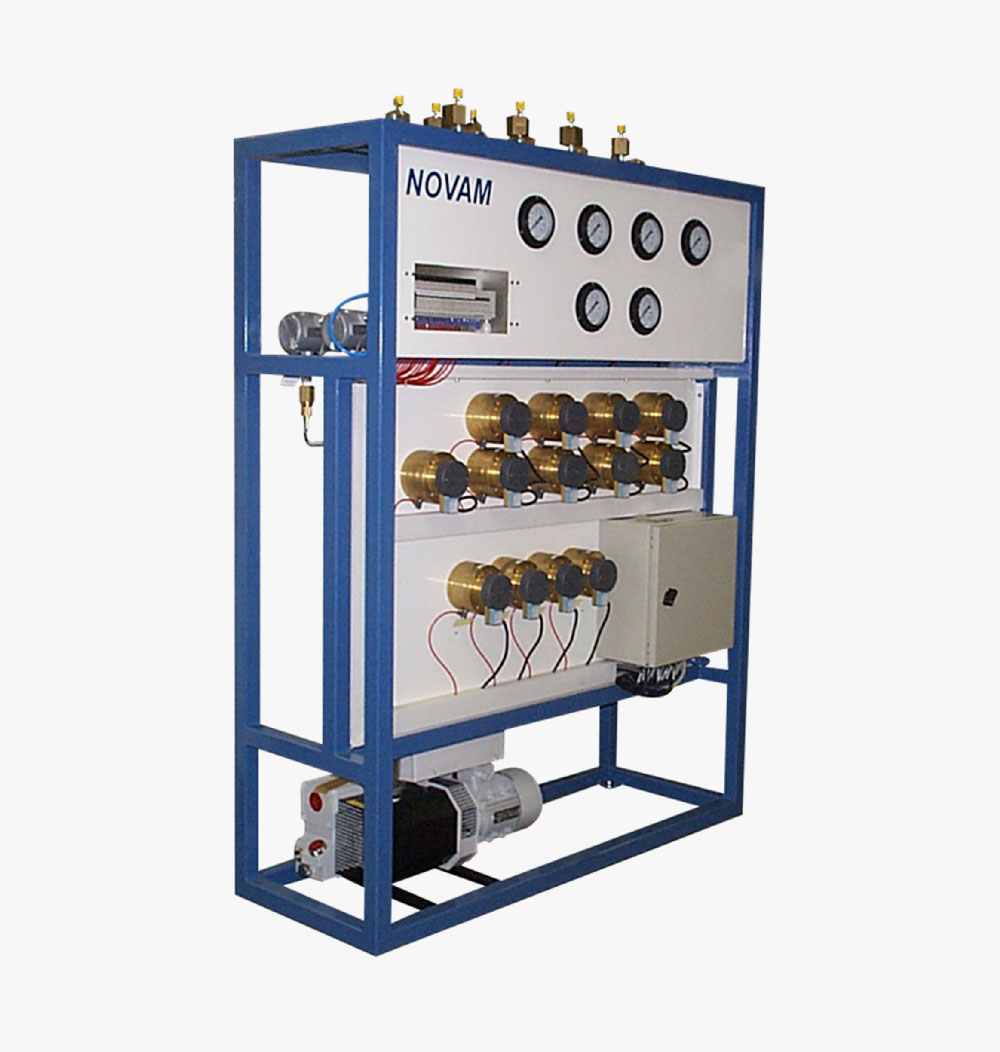

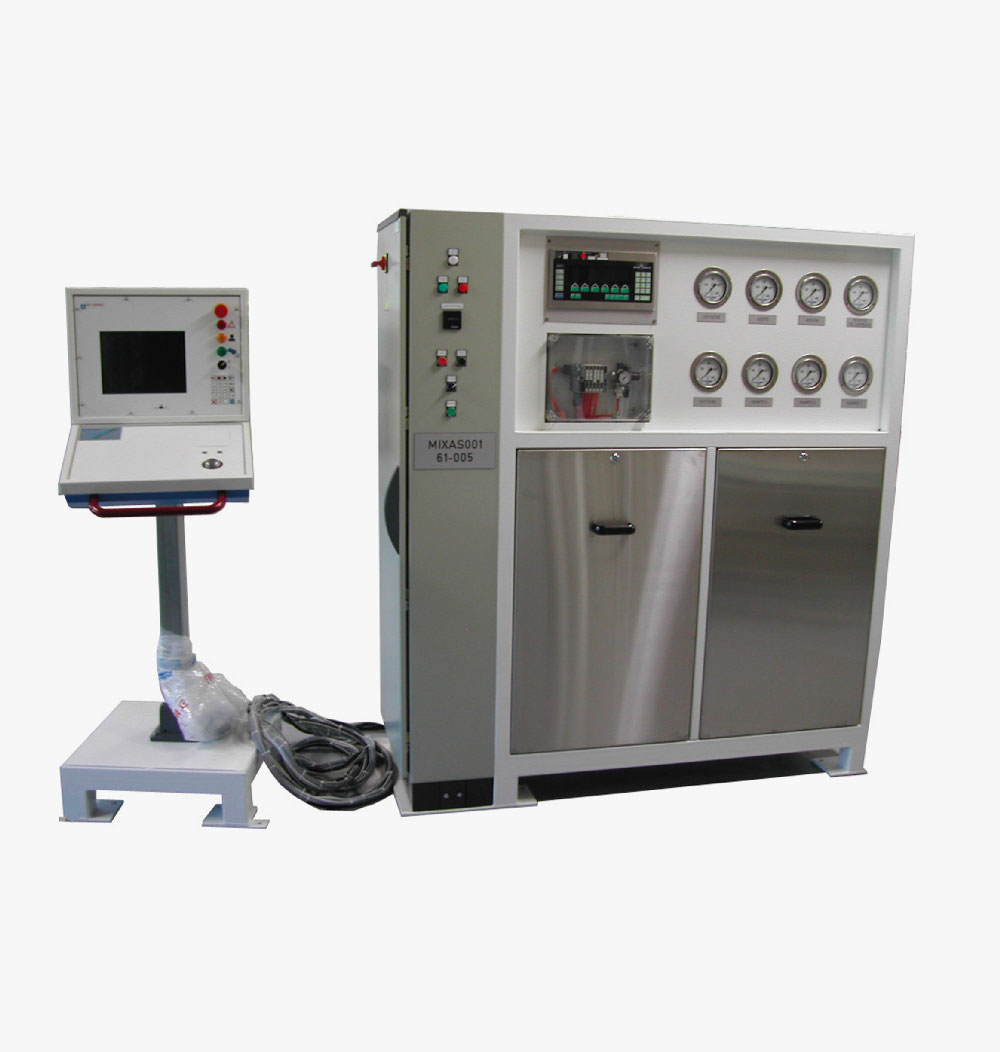

AUTOMATIC FILLING UNIT
Monogas / Mixgas Skids
Description

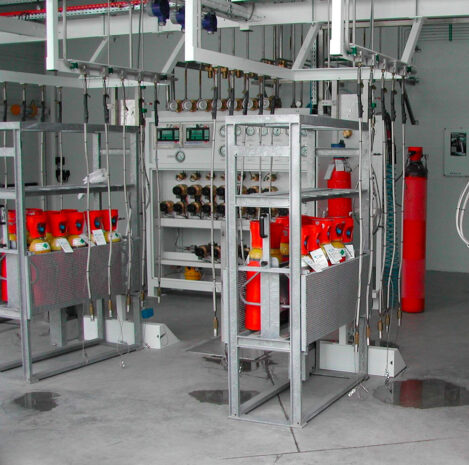

- Integrated solution (inside a frame) for automatic valves panels – cylinders filling centers.
- Semi or fully automatic, PLC piloting valves operations sequences.
- Ergonomic design and modularity.
- Leak & pressure tests.
- Certificate of conformity after validation.
- Frame : stainless steel or painted steel (colour upon customer request).
- operator interface : touchscreen 15″
Working Conditions
- Industrial Gases : Oxygen, Hydrogen, Neutral And Rare Gases, Others On Request.
- Medical Gases : Oxygen, N20, Medical Air…
- Service Pressure : Depending On Cylinders Allowable Pressure.
- Working Temperature : -40°C Up To +80°C.
Options
- Iinlet/Outlet Connectors On The Same Level Above The Skid.
- Operator And Equipment Protection : Makrolon Plates With Or Without Grid Or Stainless Steel Plates.
- Inlet And Outlet Connector According To The Piping Class.
- Flawmeter in option
- Weight scale in option
