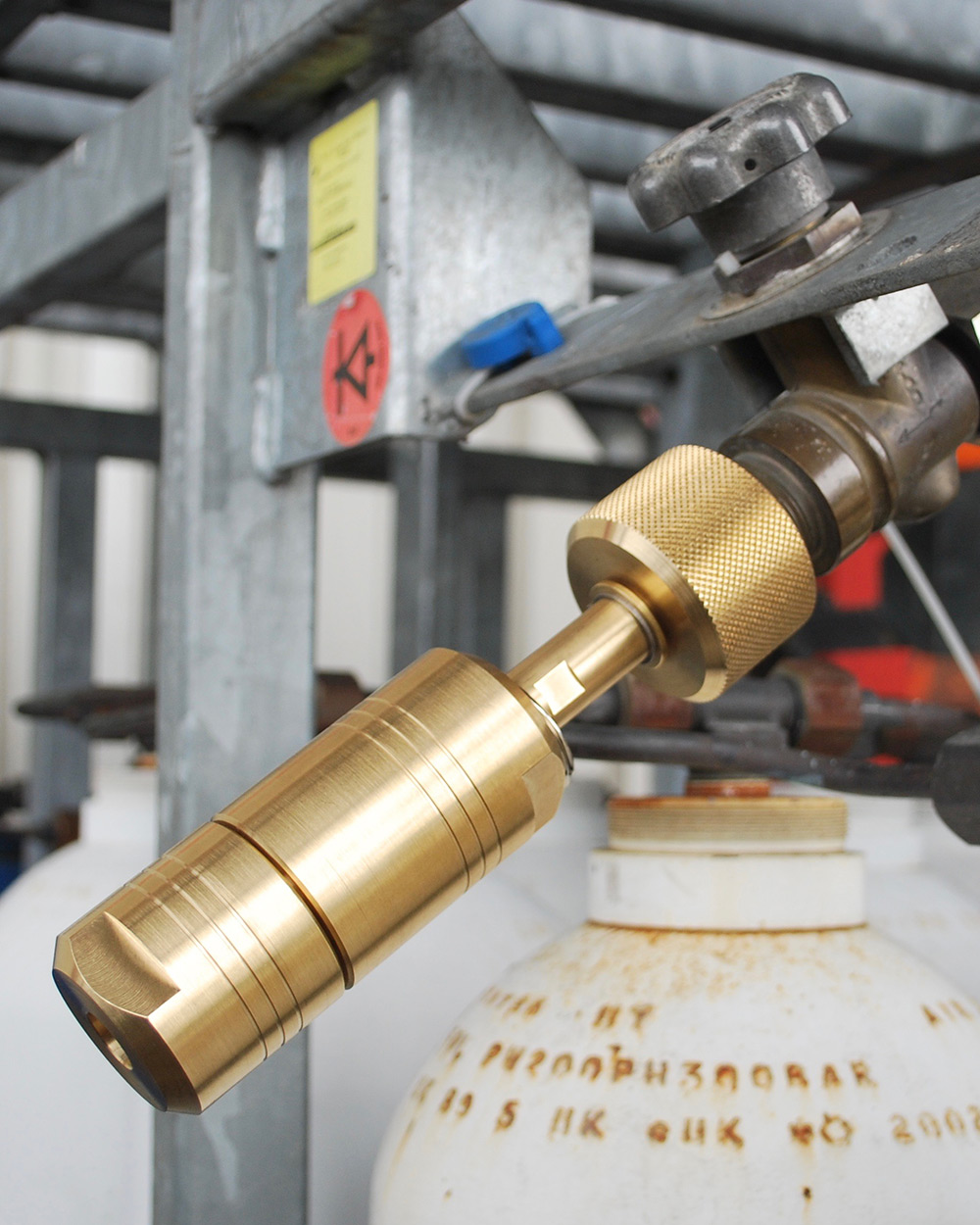

Filling Connectors
Description
- Allows the operator to check the pressure of a cylinder or a bundle in full security.
- Agreed for the adiabatic compressions in oxygen by CTE.
- Frame Purging System allows to purge HP gas cylinders frames in fully safe conditions.

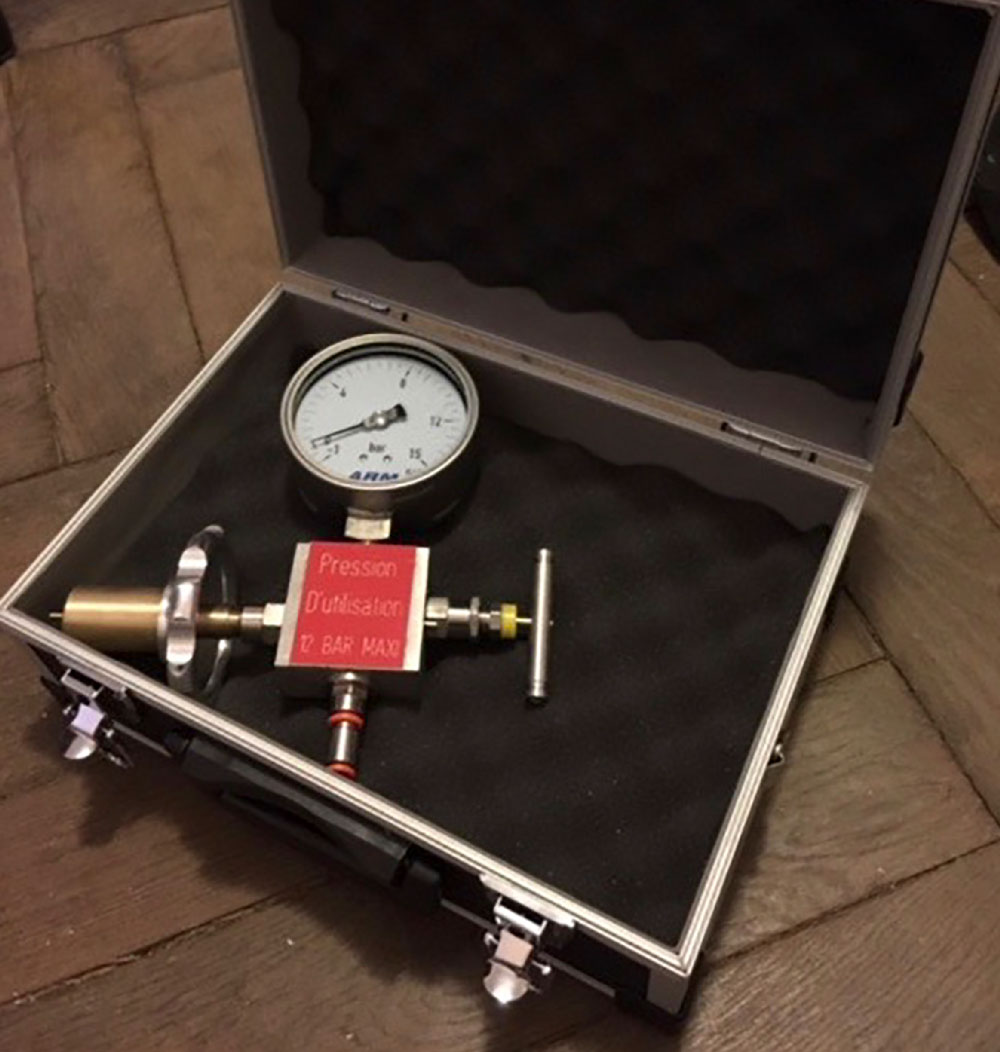

- Cylinder pressure check
- Bundle pressure check
- Bundle purging
Working Conditions
- Industrial gases: O2, H2; rare gases, inert gases and gas mixes, other fluid on request.
- Medical gases: O2, N2O, air and mixes…
- Service pressure range: from vacuum to 420 bar.
- Working temperature range: -40°C/+80°C.
Technical Data
- Brass construction.
- O-ring following customer request.
Connections
- Any connectors following customer request and valve cylinder.
- Valve cylinder with residual pressure.
- Pressure Gauge DN100 class 1.
