Filling Stations
FILLING RAMPS
Filling Stations
Description

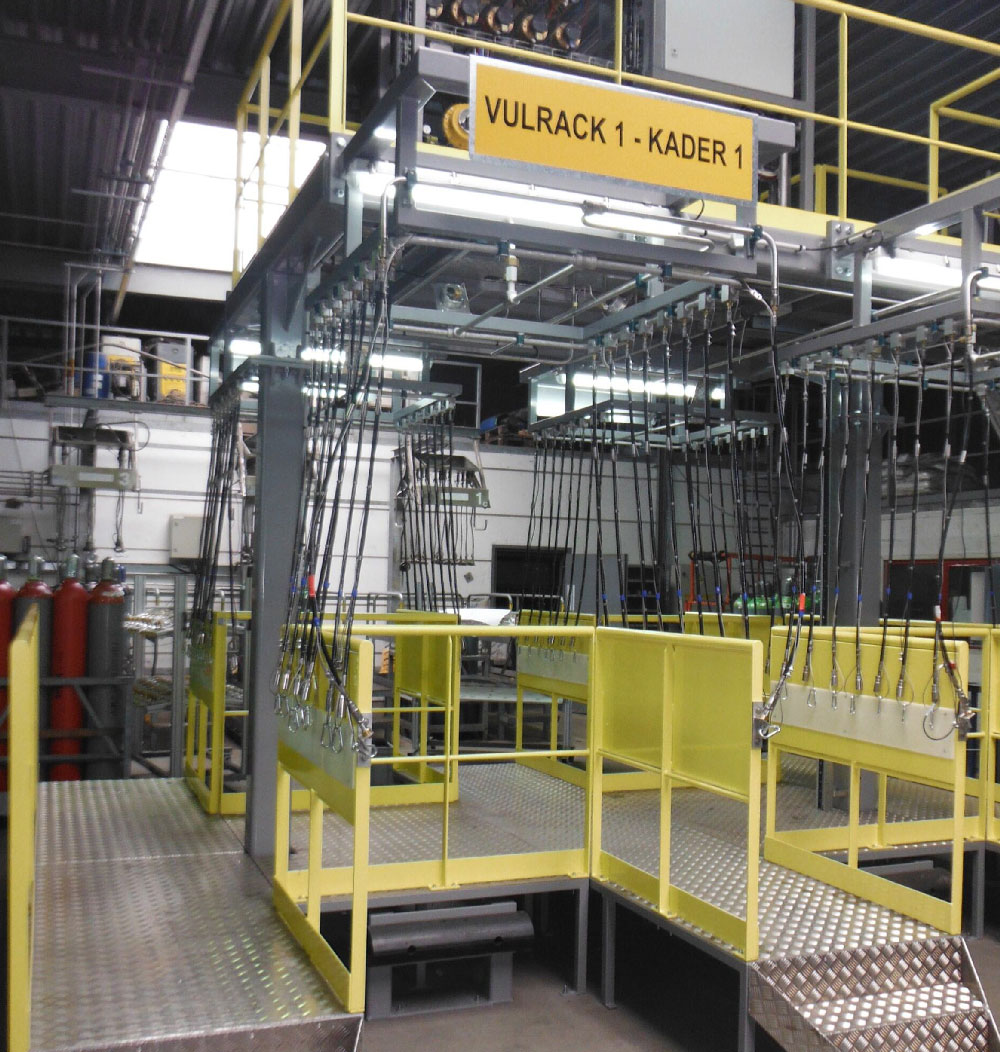

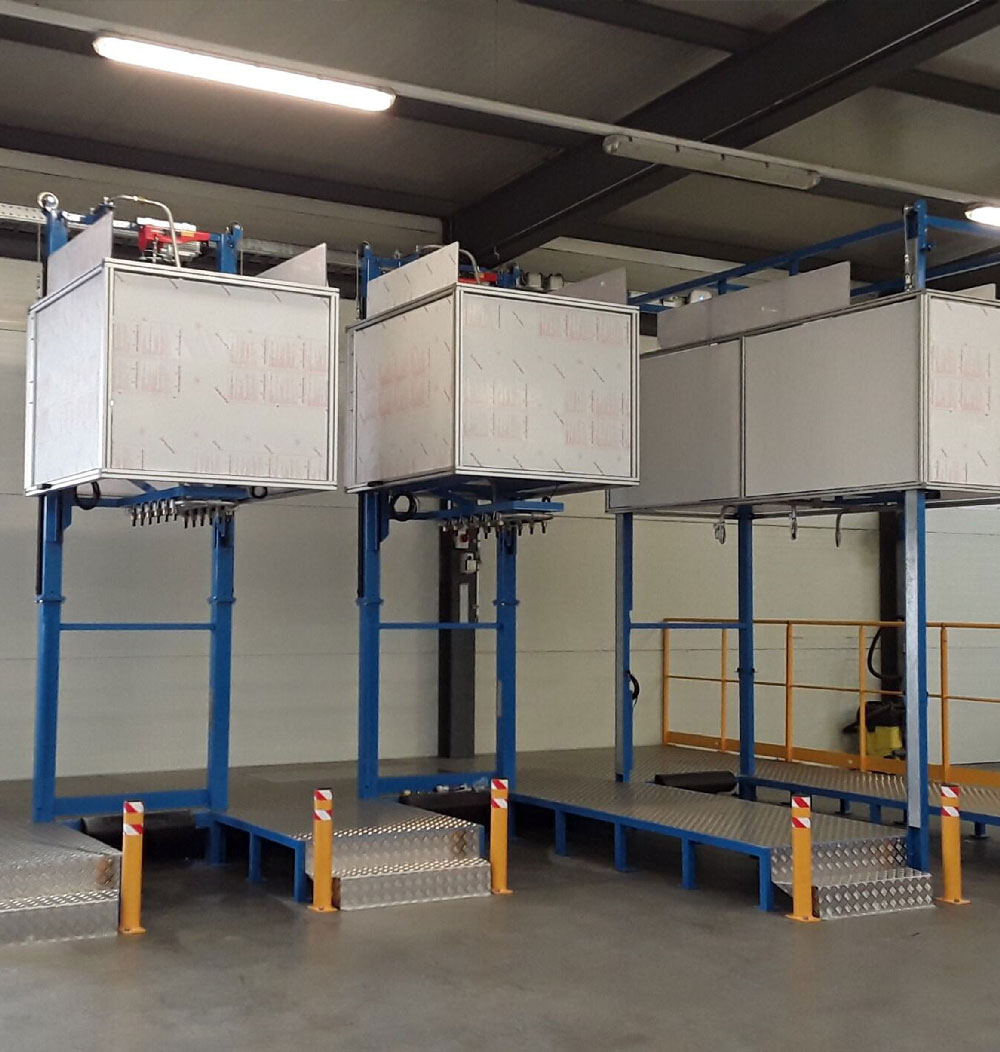

- Wide range of filling ramp, stand alone or wall mounted.

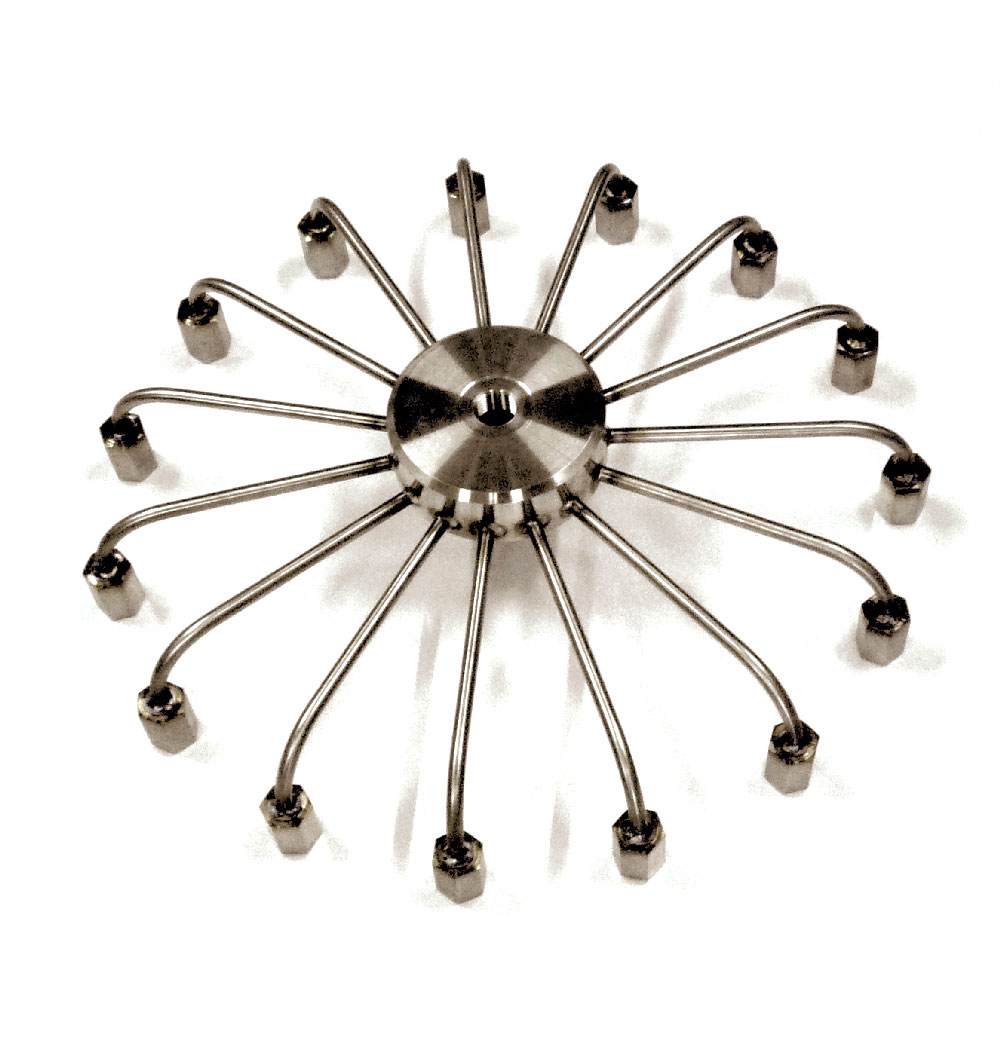

- Spider shape ramp for bundles.

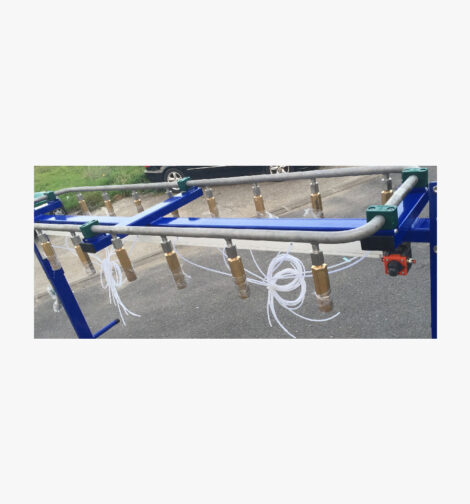

- Hippodrome shape ramp.

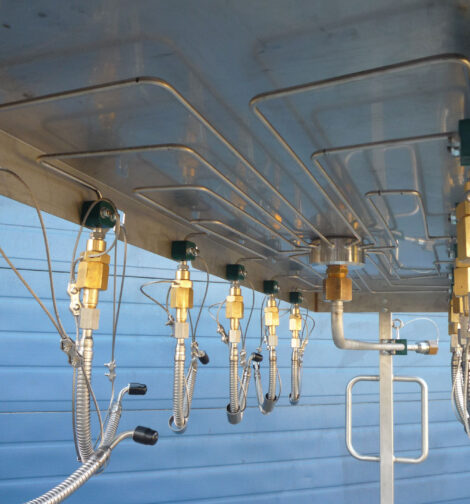

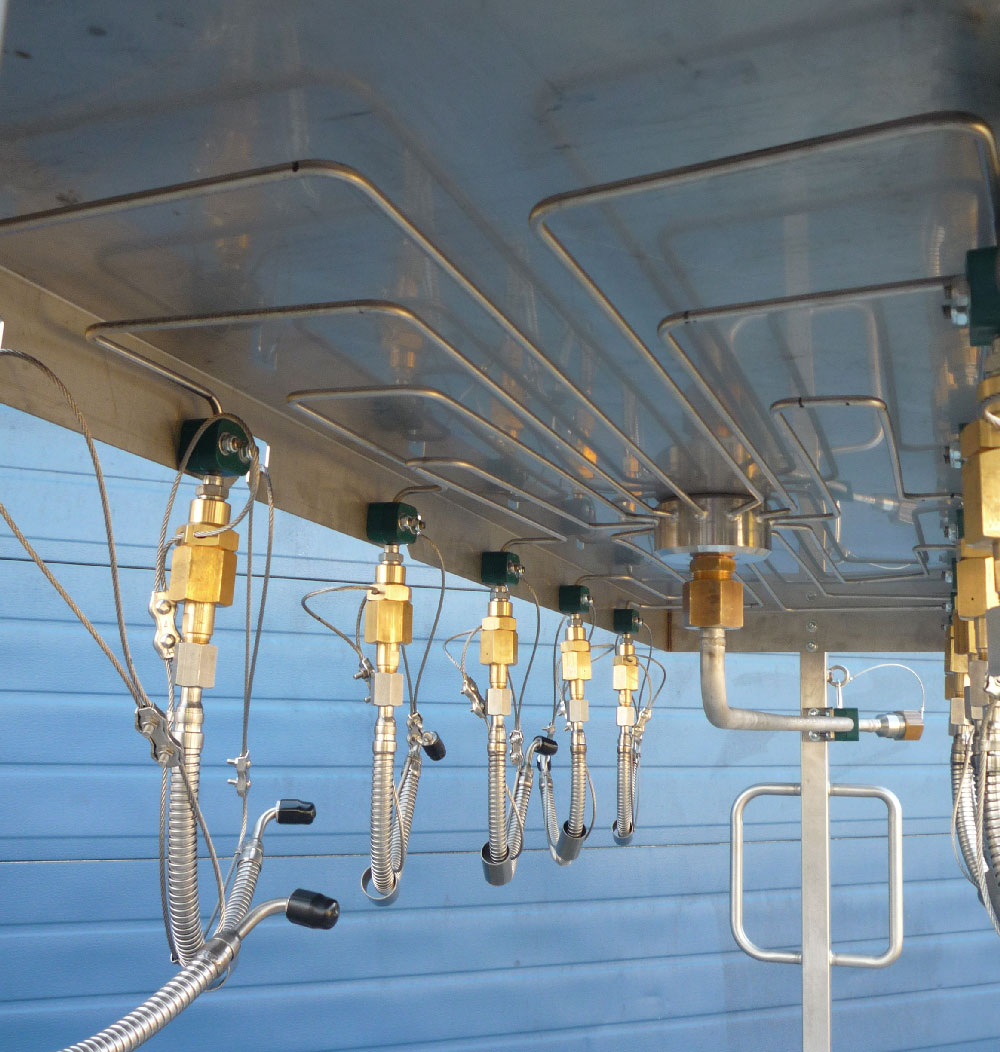

- Flexible hoses or pigtails connectors according to the customer standard.
- Stainless steel 316 L, Monel as an option.
- Frame : stainless steel or painted steel (colour upon customer request).
- Leak & pressure tests.
- Certificate of conformity after validation.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Service pressure : up to 420 bar.
- Working temperature : -40°C up to +80°C.
Options
- Safety cage for operators protection.
- Filling platform.
- Hooks for flexible hoses at rest.
- Load balancer (in case of heavy filling connectors).
- Inlet and outlet connector according to the piping class.
