FI5 BUNDLE SERIES
NDS FILTER
Filters
Description
- In-line filter.

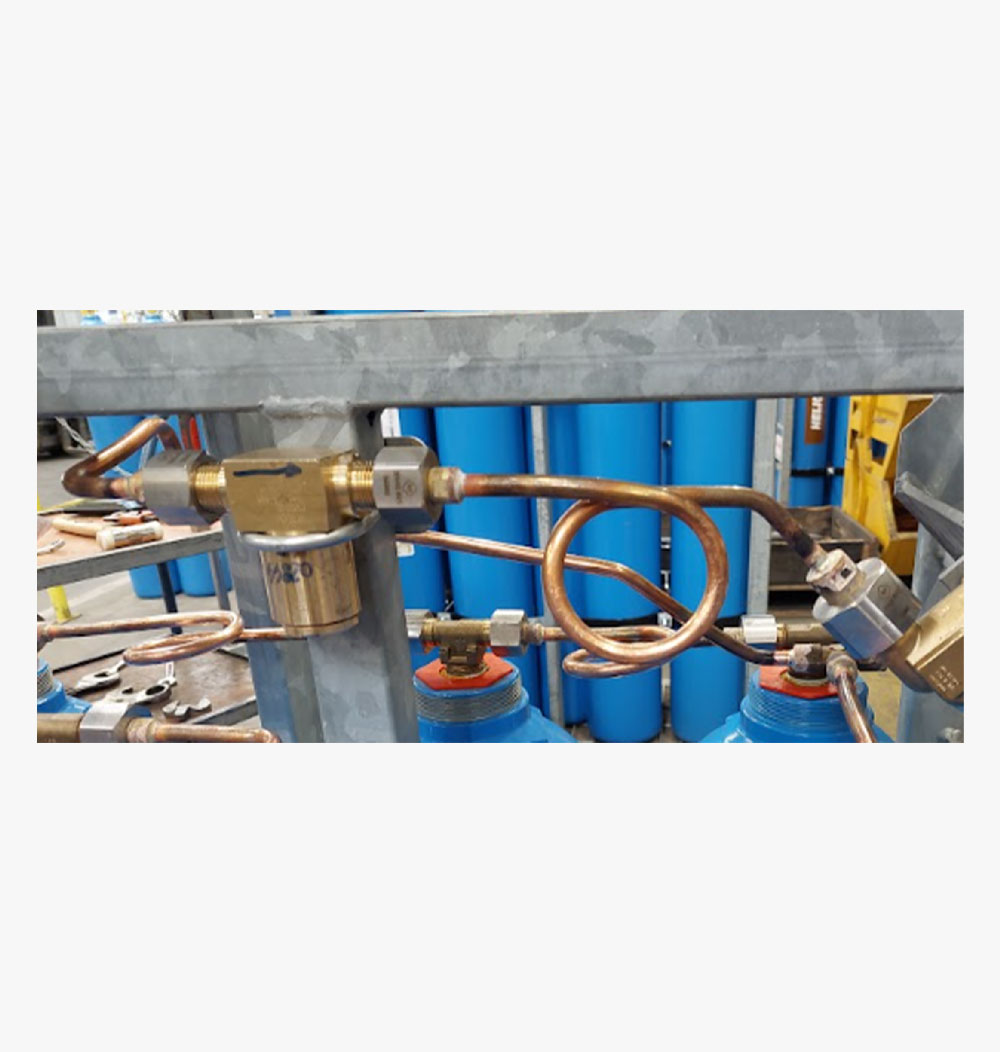

- FI5 designed for bundles.
- Easy change of the filter cartridge.
- Oxygen adiabatic compression tests performed by CTE on FI5 at 240 bar.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Working pressure : FI5 : 240 bar
- Working temperature : -40°C up to +80°C.
Technical Data
- Nominal diameter : FI5 : 5 mm
- Material : brass.
- 20 micron filtration.
- O-Ring according to customer needs.
Connections
- Stainless steel or brass screwed connectors.
Options
Specific connectors.

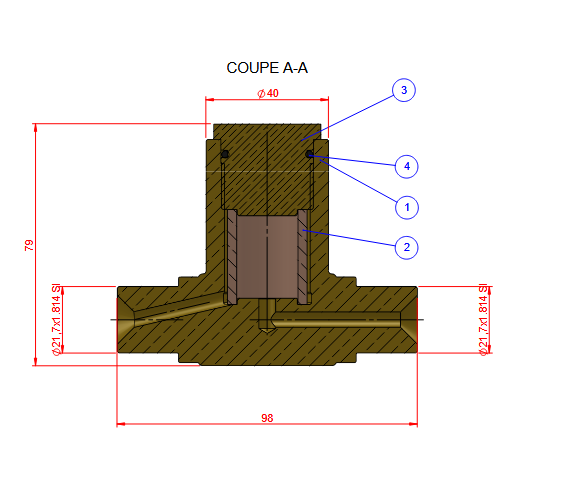

Overall Dimensions (mm)
