CA12.7 SERIES
ND12.7 CHECK VALVE
Check Valves
Description
MRTech has designed a range of ND12.7 Check Valves
(Non Return Valves) test pressure up to 600 bar.
• ND 4-360 bar
• ND 6-360 bar
• ND 10-360 bar
• ND 12.7-420 bar
Working Conditions
Body : Brass stainless steel or SW1 on request For 420 Bar.
• Obturator :Monel For Oxygen & neutral gases, peek PO2 Hydrogen / Helium.
• Gas Compatibility : Oxygen Nitrogen, Hydrogen, Co2…
• Working Température : Minus 30°C To Plus 80°C.
• Degreased For O2 Use.
Connections
- Stainless steel welded connectors 1/2” Sch 80, 3/4” Sch 160, others on request.
- Monel welded connectors as an option.
- Other connectors on request.

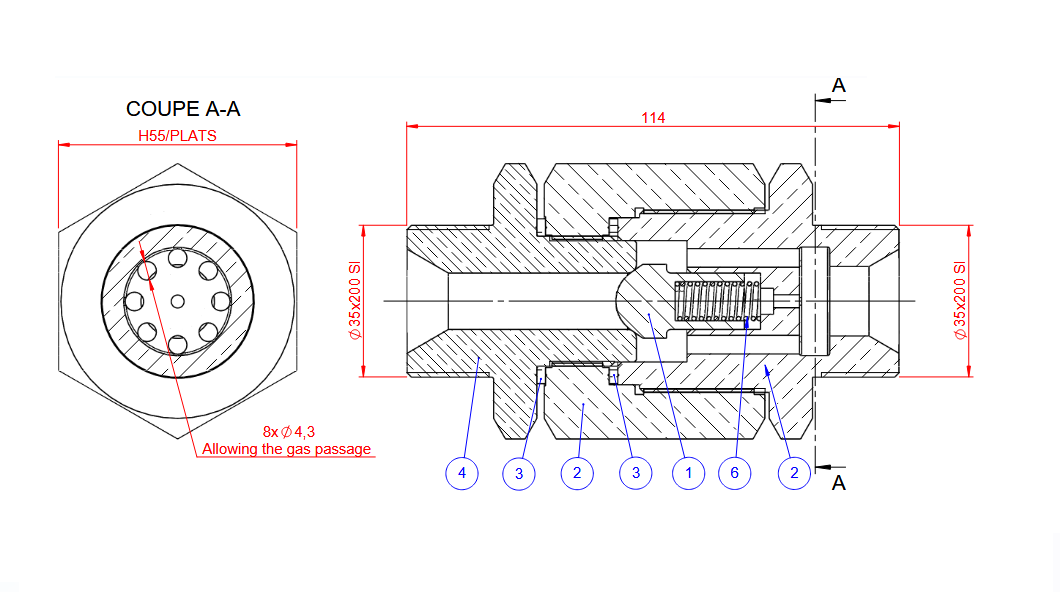

Overall Dimensions (mm)
