FI 12.7 SERIES

ND12.7 FILTER
Hydrogen Valves & Equipments
PDF File

Description

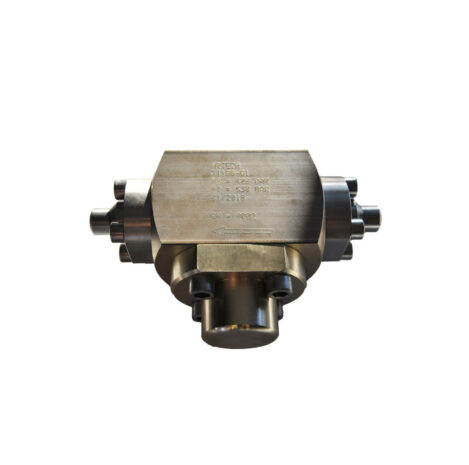

MRTech has designed a specific 700 bar filter
MRTech Filter is designed to trap impurities remaining upstream in the installation, preventing them to spoil valves and other equipments

Working Conditions

  • Oxygen adiabatic pressure test : 420 bar.
  • Working pressure : 420 bar.

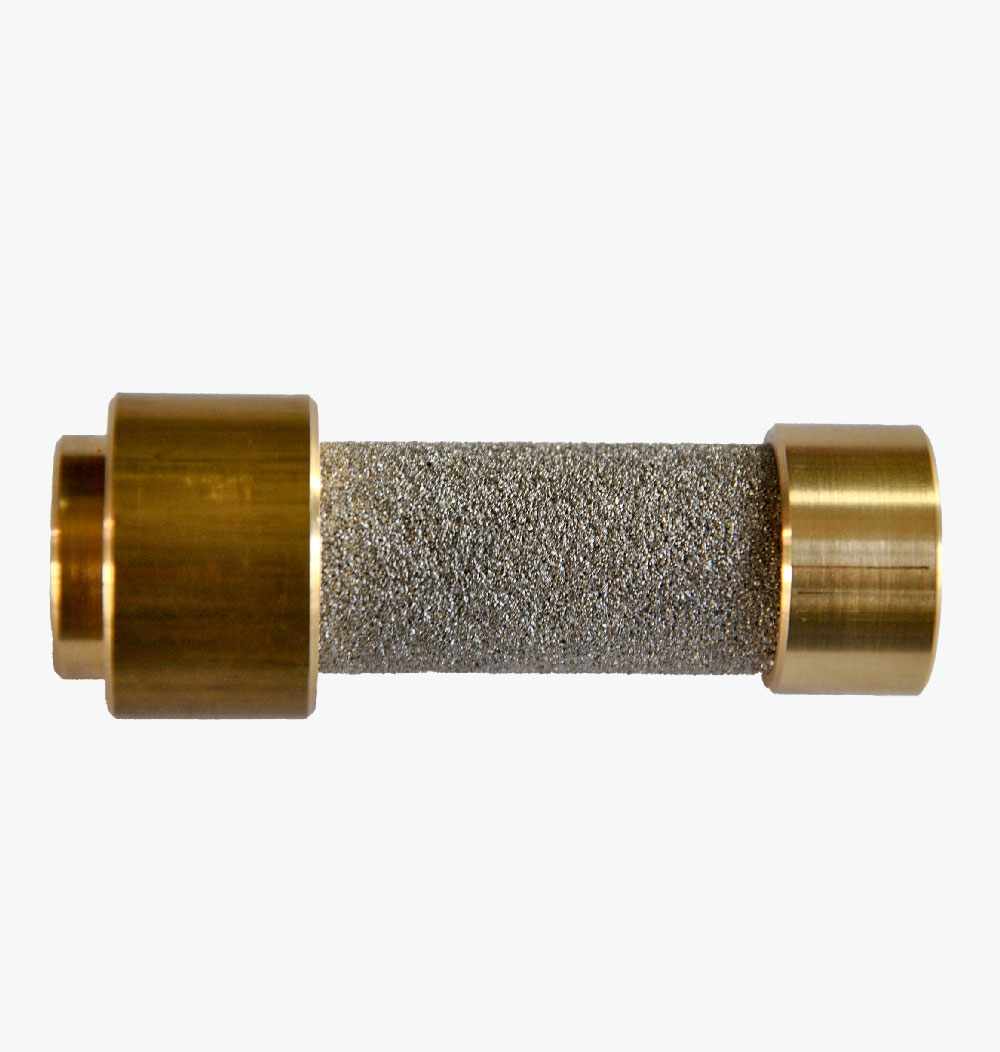

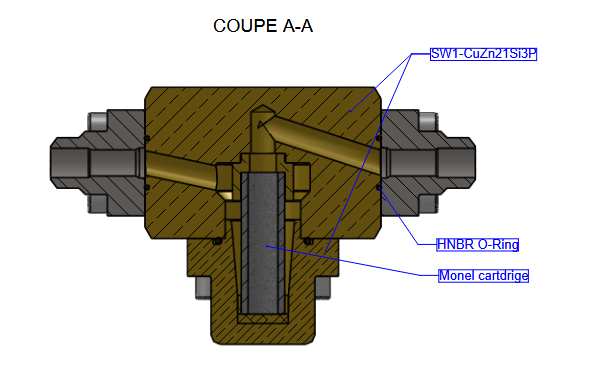

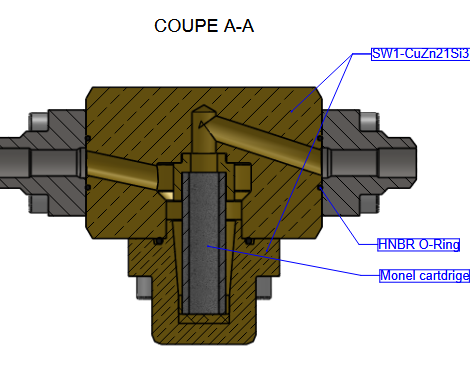

  • Cartridge : Monel for Oxygen, Stainless Steelfor neutral gases.
  • Gas compatibility : oxygen, nitrogen, hydrogen, argon, CO2…
  • Working température : minus 30°C to plus 80°C.
  • Degreased for O2 use.

Technical Data

  • Flow diameter ND 12.7.
  • 20 to 70 microns.
  • Connection : stainless steel or monel flange from 1/2 » Sch 80 up to 1 » Sch 160.
  • Body : SW1 Ecobrass; stainless steel on request.

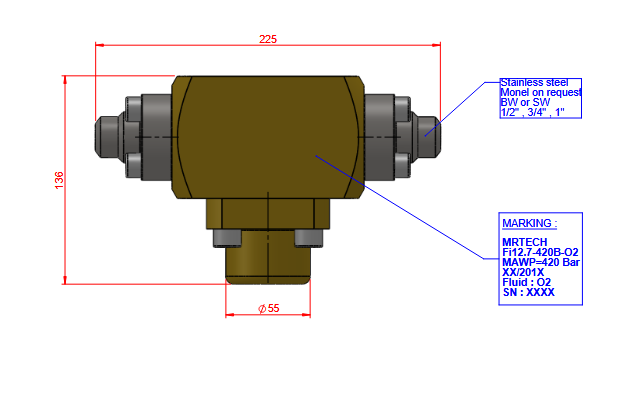

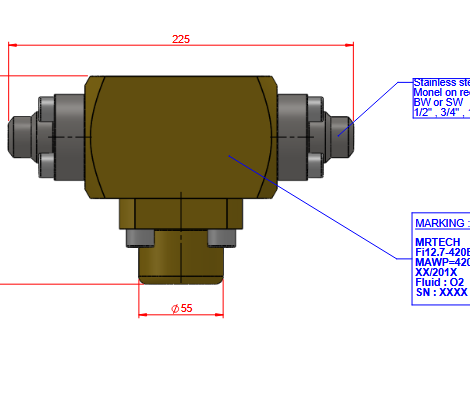

Overall Dimensions (mm)
