PARTICLES TRAP SERIES
ND12.7 PARTICLES TRAP
Line Fittings
Description
- MRTech Particles Trap prevents particles and metal chips from damaging valves and fittings.
- MRTech Particles Trap are even working with gas reversed circulation.
- Heat dissipator integrated.

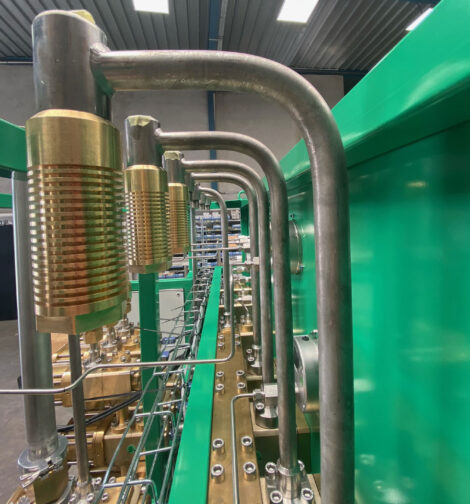

- Particles traps mounted on both inlet and outlet pipes prevents the valves panels from particles damages.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Working pressure : from vacuum up to 420 bar.
- Working temperature : -40°C up to +80°C.
Technical Data
- Nominal diameter : 12.7 mm.
- Material : brass.
- O-Ring EPDM.
Connections
- Stainless steel welded connectors 1/2” Sch 80, 3/4” Sch 160, others on request.
Overall Dimensions (mm)
