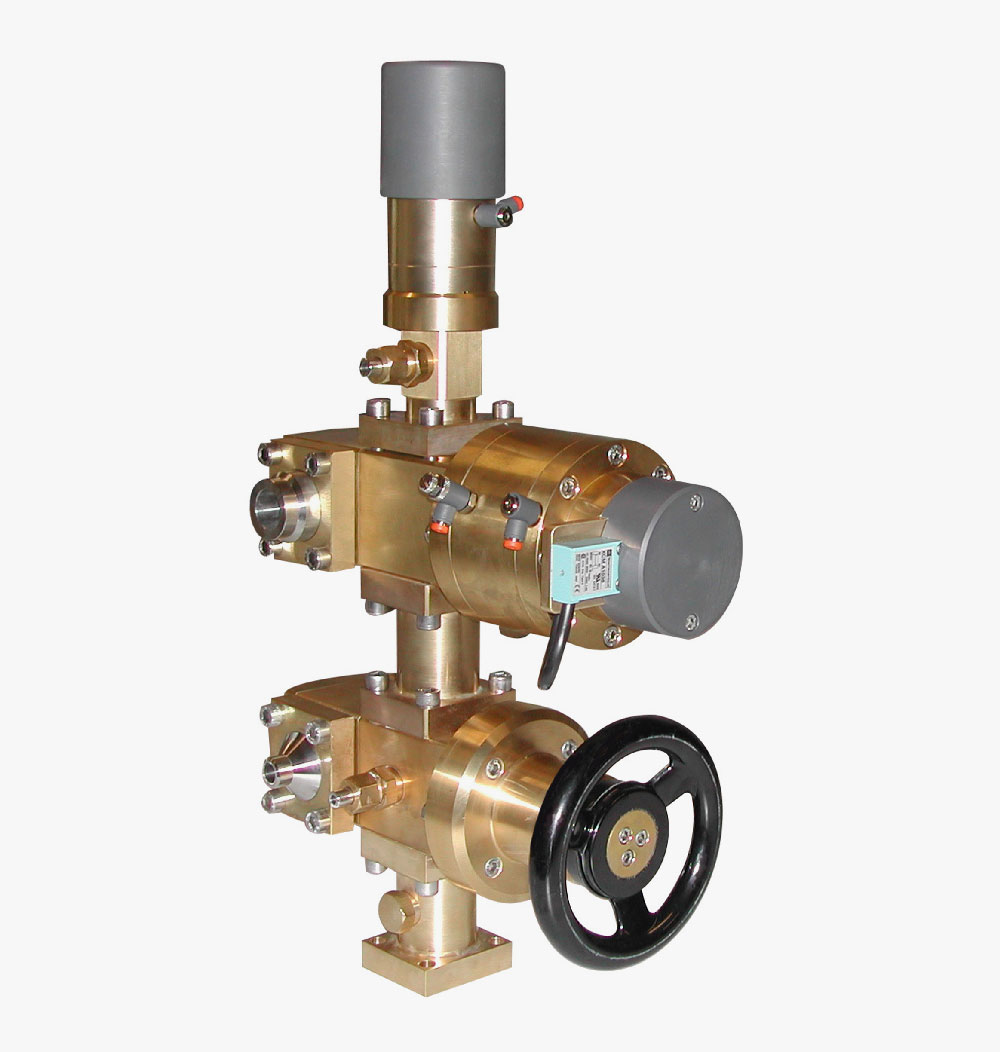

NOVAM Valves

VA20 Series

PNEUMATIC & HAND VALVES

NOVAM Valves

Description

Balanced valve : no effort required to open or close the valve.
Throttle valve allowing gradual pressure rise.

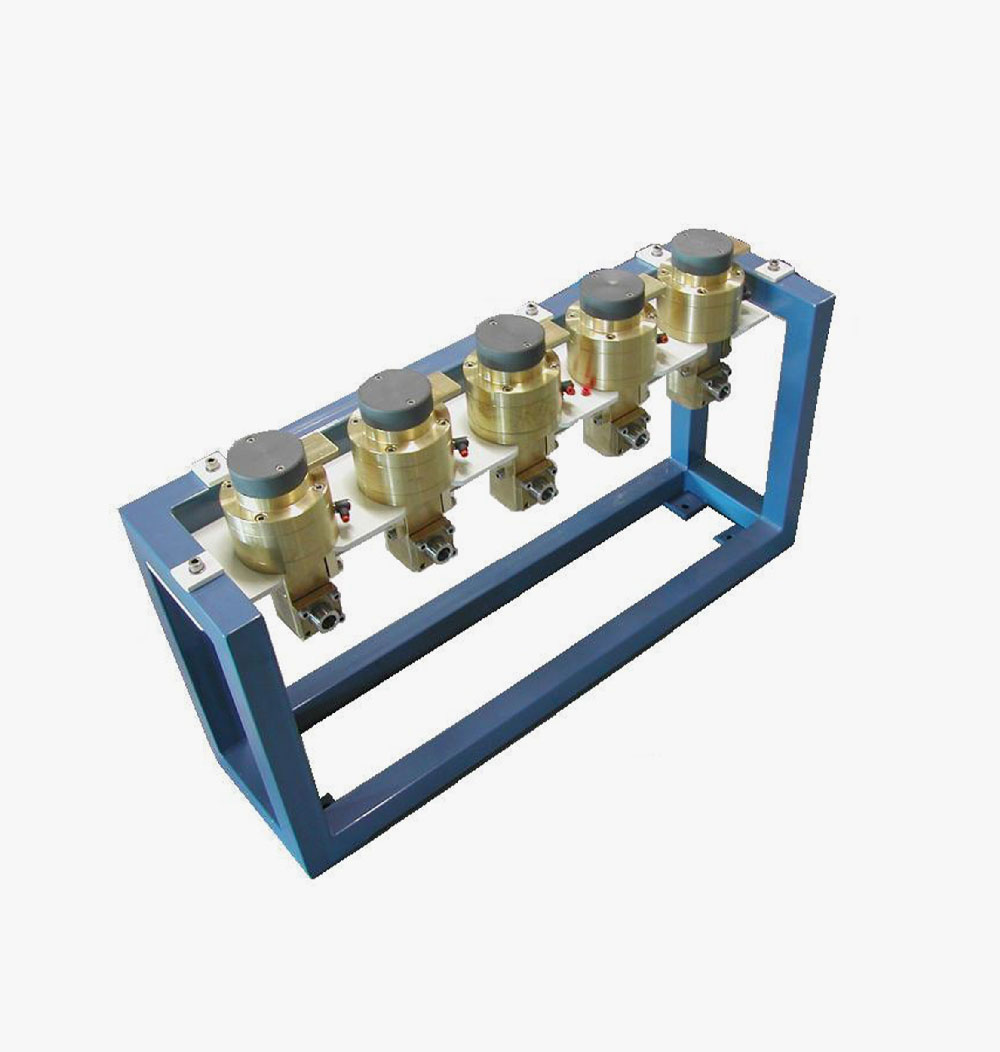

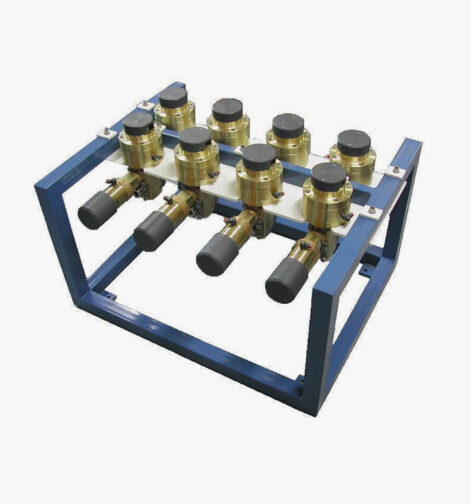

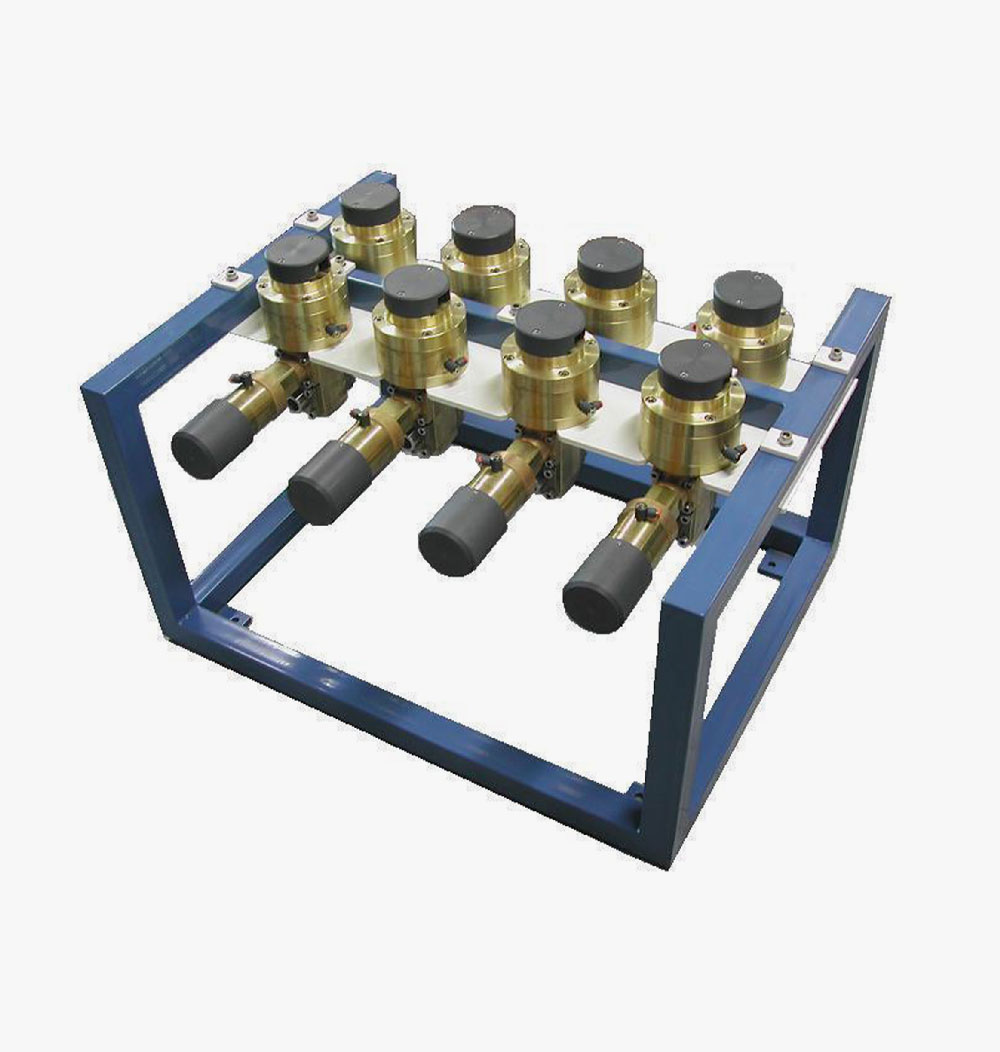

90° or 180° rotation of both upper and lower bodies for an easier integration inside valves panels.
Oxygen adiabatic compression tests performed by CTE at 360 bar.

Working Conditions

Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
Medical gases : Oxygen, N20, Medical air…
Working pressure : from vacuum up to 420 bar.
Working temperature : -40°C up to +80°C.

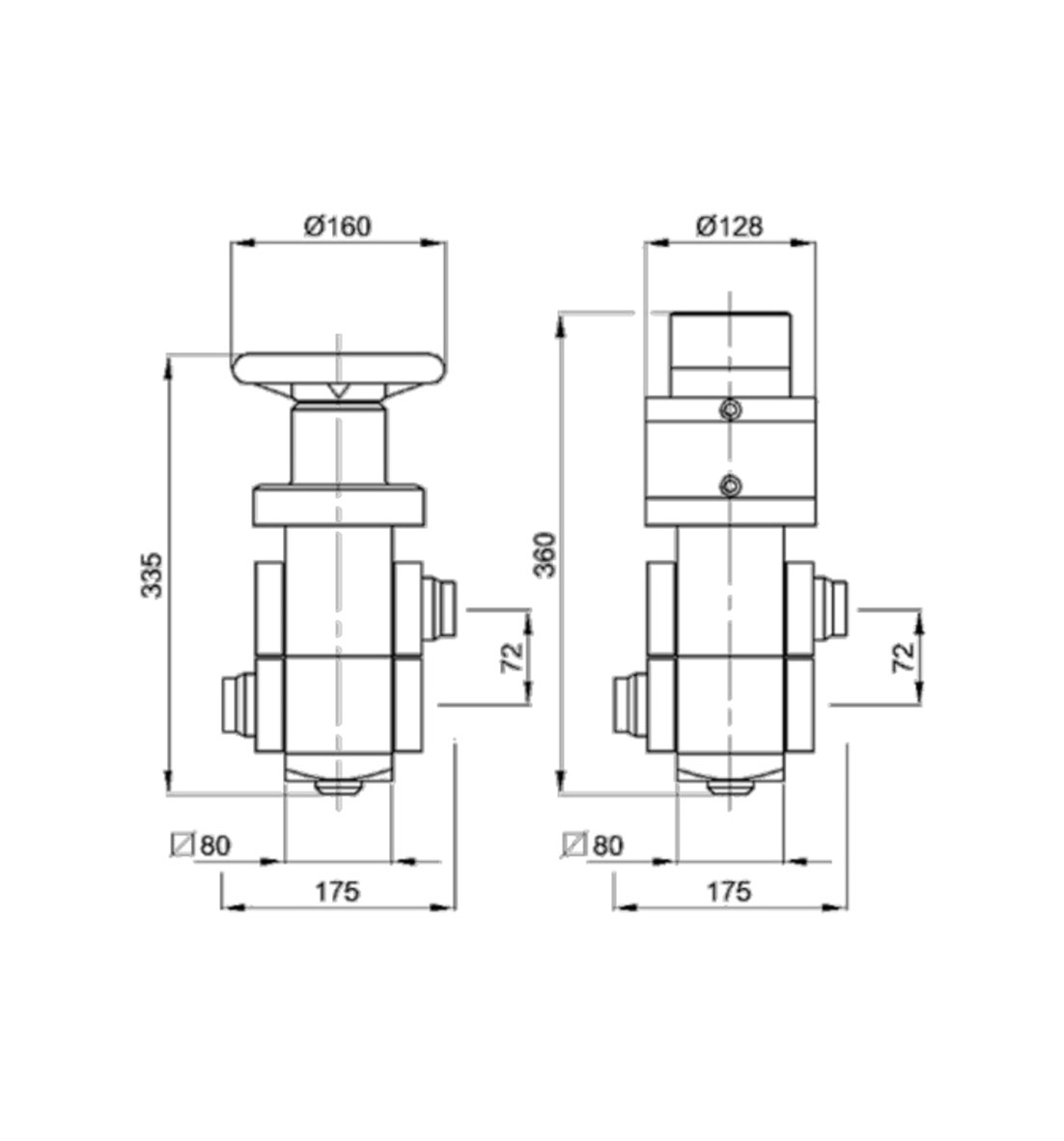

Technical Data

Nominal diameter : 20 mm
Internal tightness : metal-metal or metal-peek depending on the gas type.
Material : brass; stainless steel on request.
Stem and seat : Monel (peek seat for H2, He).
O-Ring according to customer needs.
External leak rate : less than 3.10-8 atm/cm3 Helium.

Connections

Stainless steel welded connectors 1/2” Sch 80, 3/4” Sch 160, others on request
Monel welded connectors as an option.
Pressure port on high pressure bodies.
Other connectors on request.

Options

Normally open design.
Limit switch.
Inter valves connector.
Limit flow connector for actuator.
