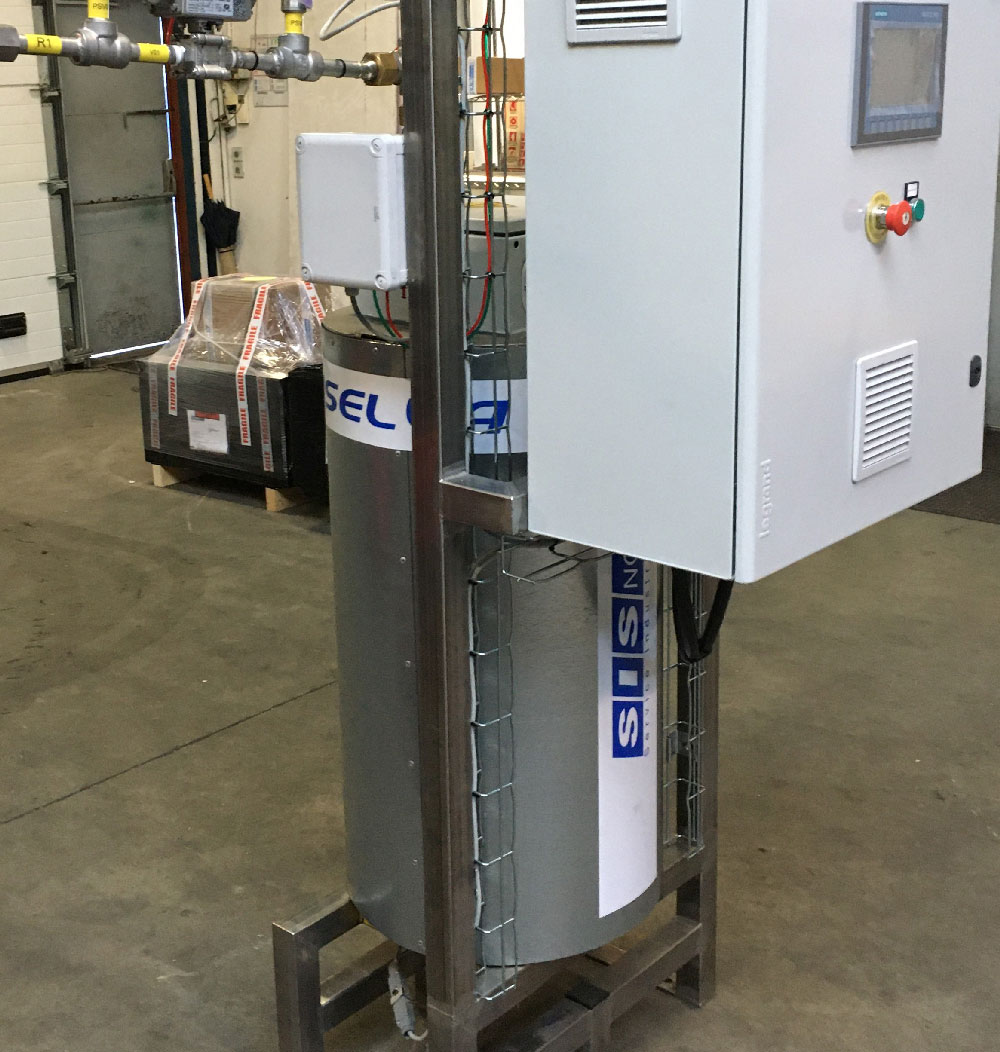

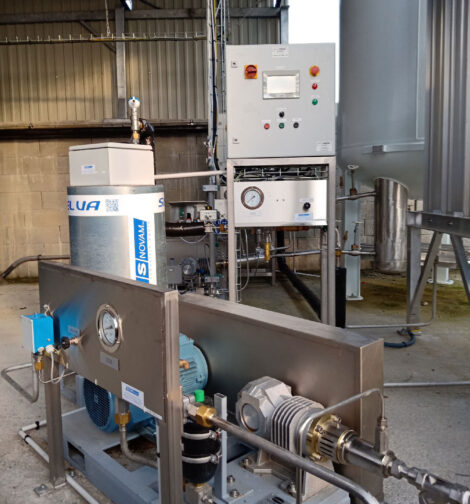

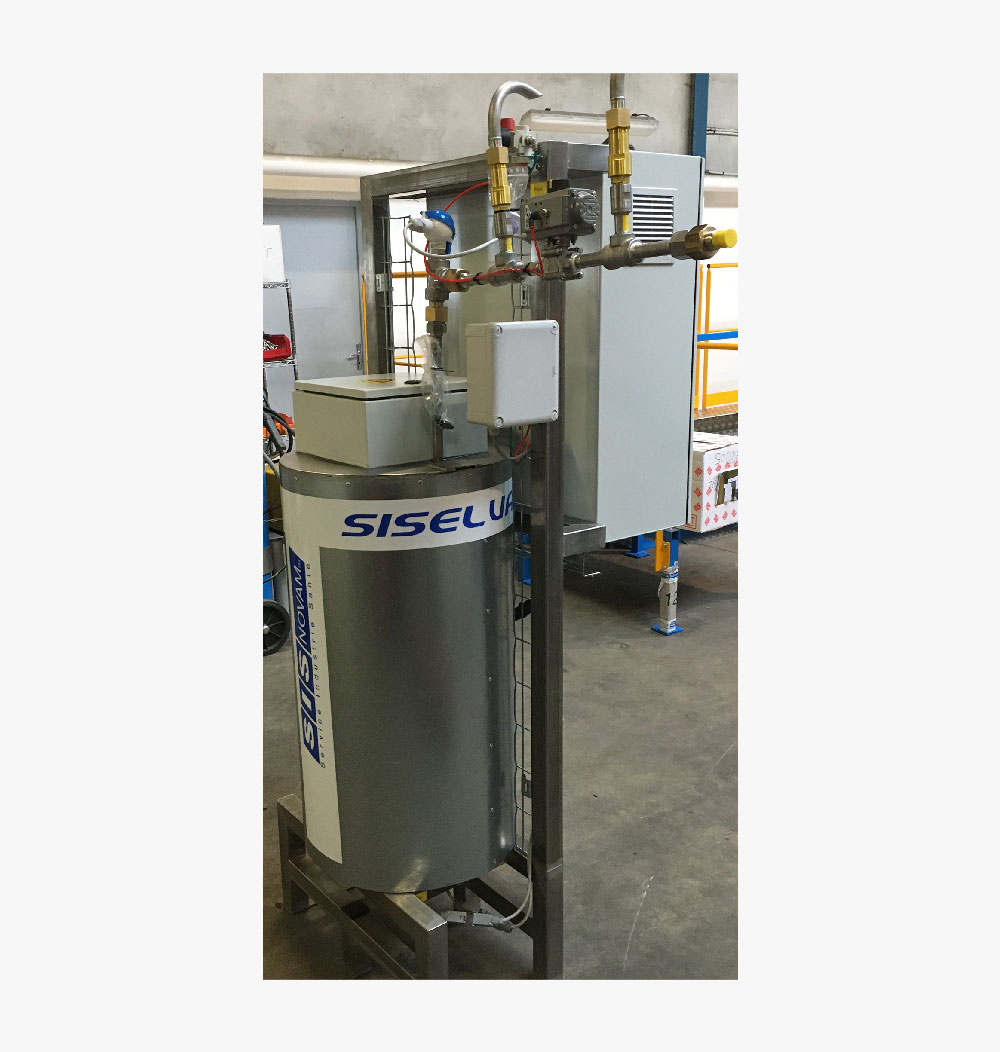

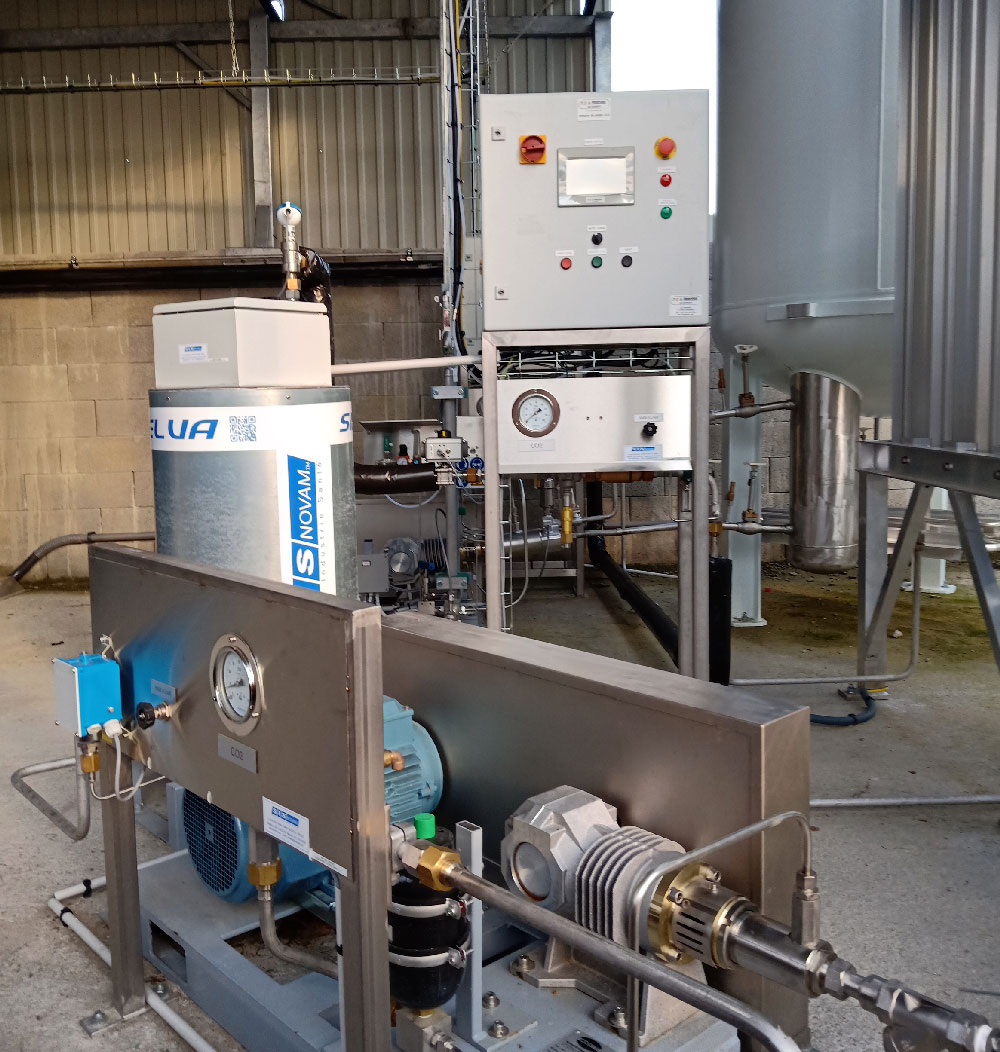

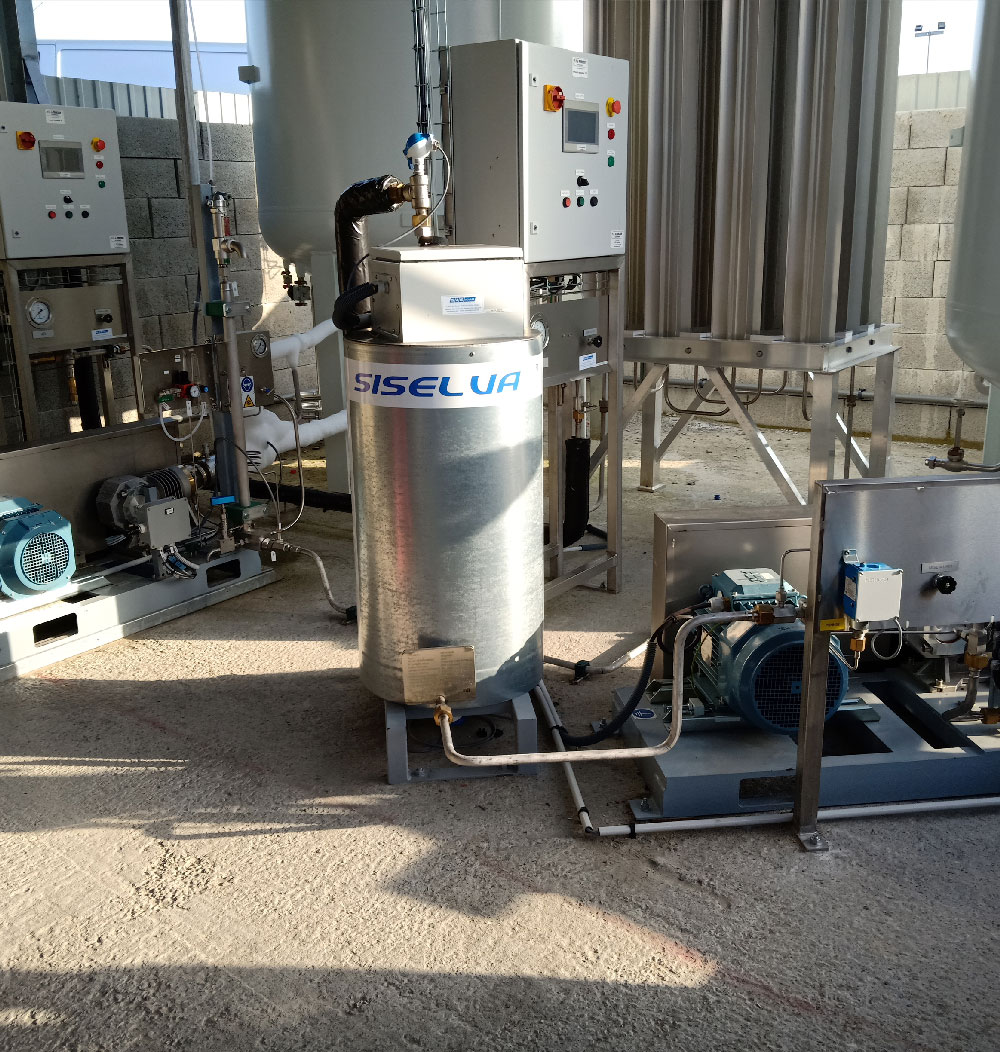

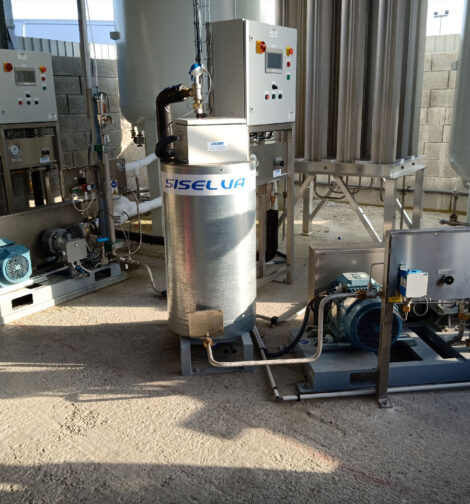

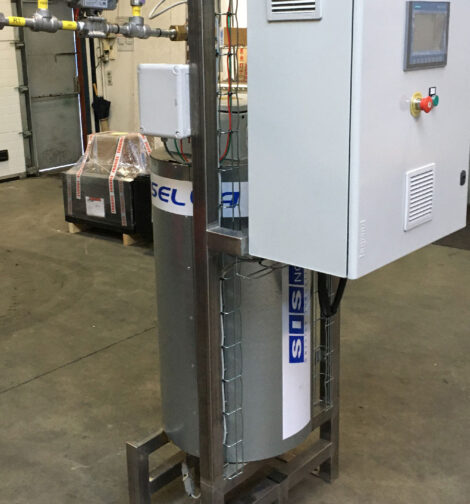

CO2 HEATER
Line Fittings
Description
- Designed for liquid CO2 vaporization.
- Electrical Vaporizer range : 115 bar-250 or 500 kg/h or 300 bar-500 kg/h.
- Helical coil inside molded aluminum block to optimize calorific transfers.
Working Conditions
- Design pressure : 115 bar or 300 bar.
- Working temperature : -60°C up to +100°C.
Technical Data
- Quick start-up cycle.
- No water or glycol water required : no risk of corrosion.
- No risk of vibration or fatigue for the coil.
- Fully controlled evaporation of the liquid (homogeneous heating).
- Optimized electrical consumption.
- No effluent issued – no physical or chemical monitoring.
Connections
- 304 L Stainless steel welded connectors ND15.
- Other connectors on request.
