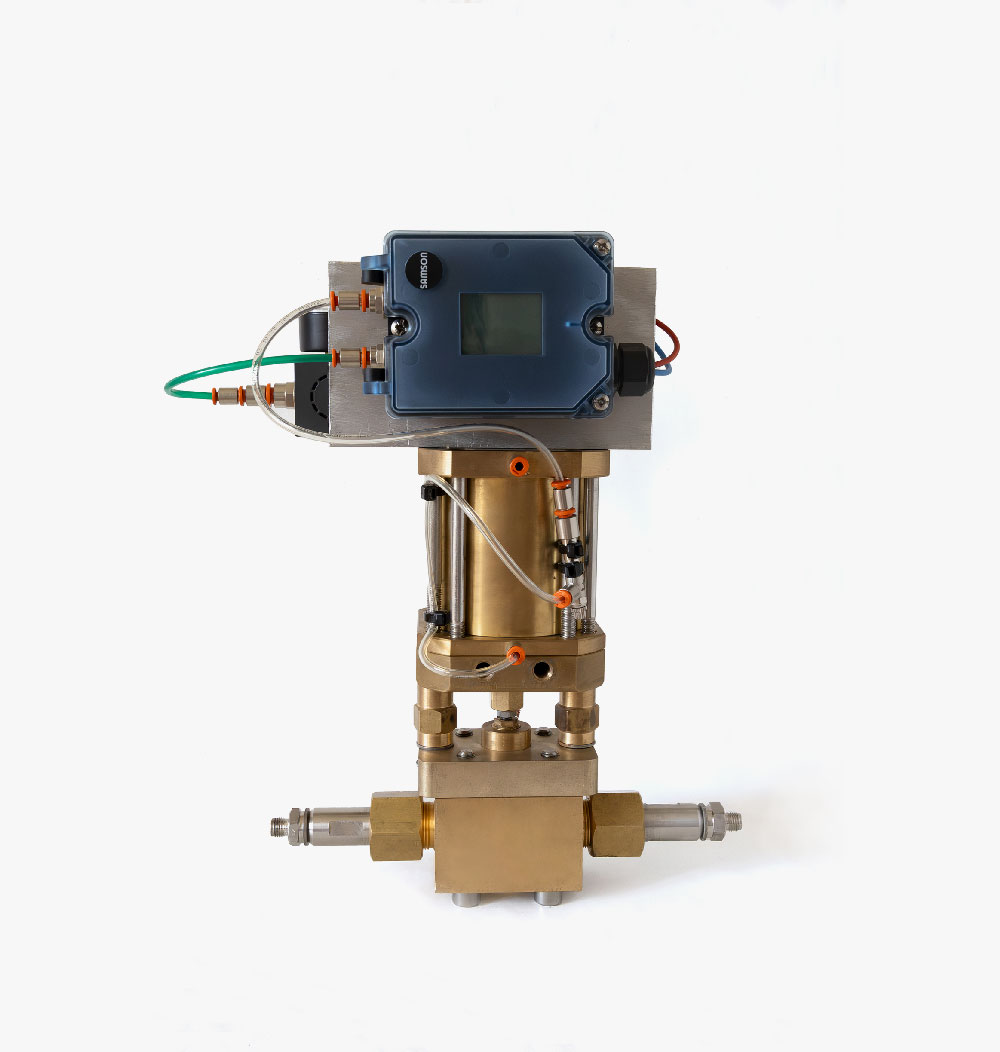

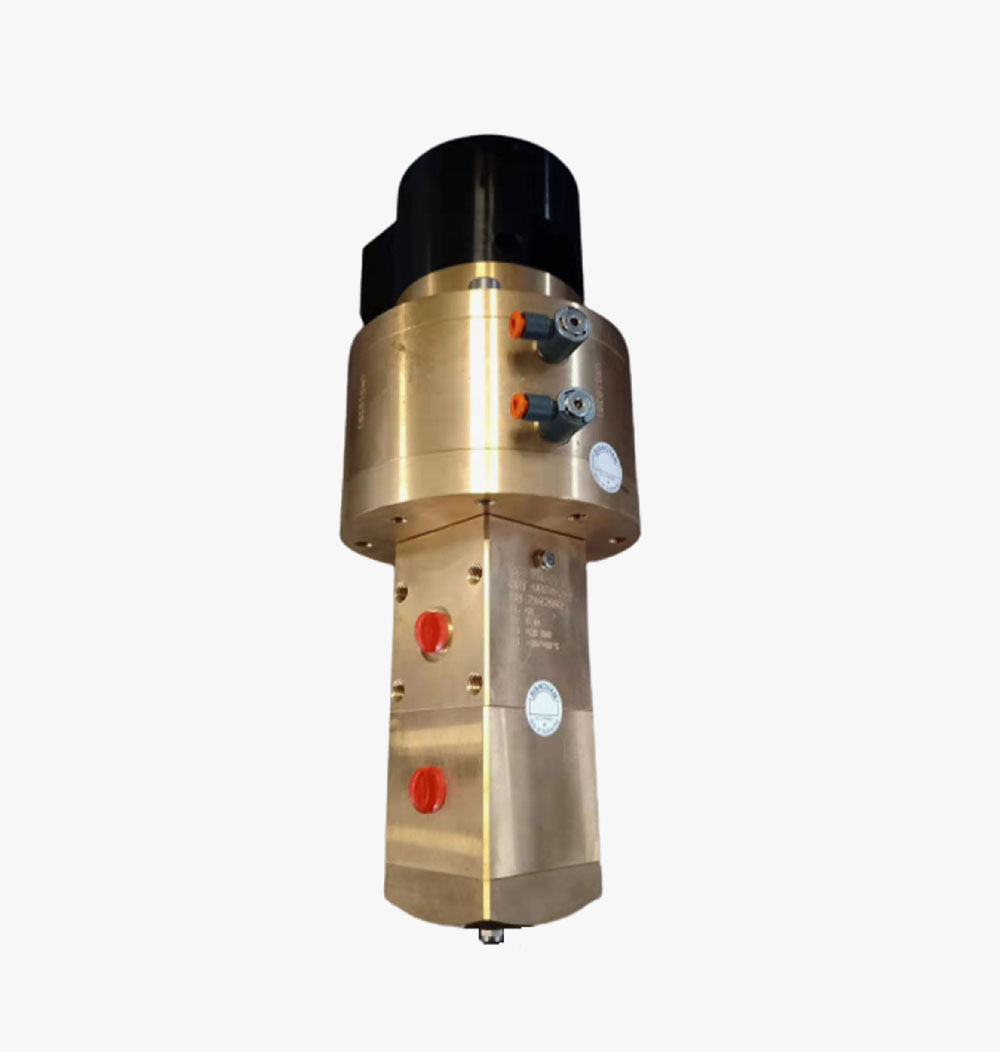

VRG1 SERIES

REGULATION VALVES
NOVAM Valves

Description

  • Specially designed to replace Kammer Regulation valve Kv 0,63 and Kv 0,063.
  • Usually same interface thus no piping modifications.
  • Needle valve design with a long stroke for better accuracy.
  • Smooth opening of the valve.
  • Oxygen adiabatic compression test performed by CTE at 420 bar

Working Conditions

  • Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
  • Medical gases : Oxygen, N20, Medical air…
  • Working pressure : from vacuum up to 420 bar.
  • Working temperature : -40°C up to +80°C.

Technical Data

  • 4 designs : Kv 0,63 or 0,25 or 0,04 and 0,075 Helium.
  • Internal tightness : metal-metal or metal-peek depending on the gas type.
  • Material : brass; stainless steel on request.
  • Stem and seat : Monel (peek seat for H2, He).
  • External leak rate : less than 3.10-8 atm/cm3 Helium.
  • Signal 4-20 mA.

Connections

  • Stainless steel welded connectors 1/2” Sch 80, 3/4” Sch 160, others on request.
  • Monel welded connectors as an option.

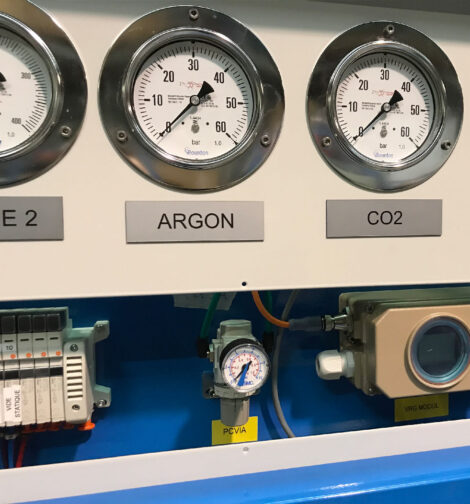

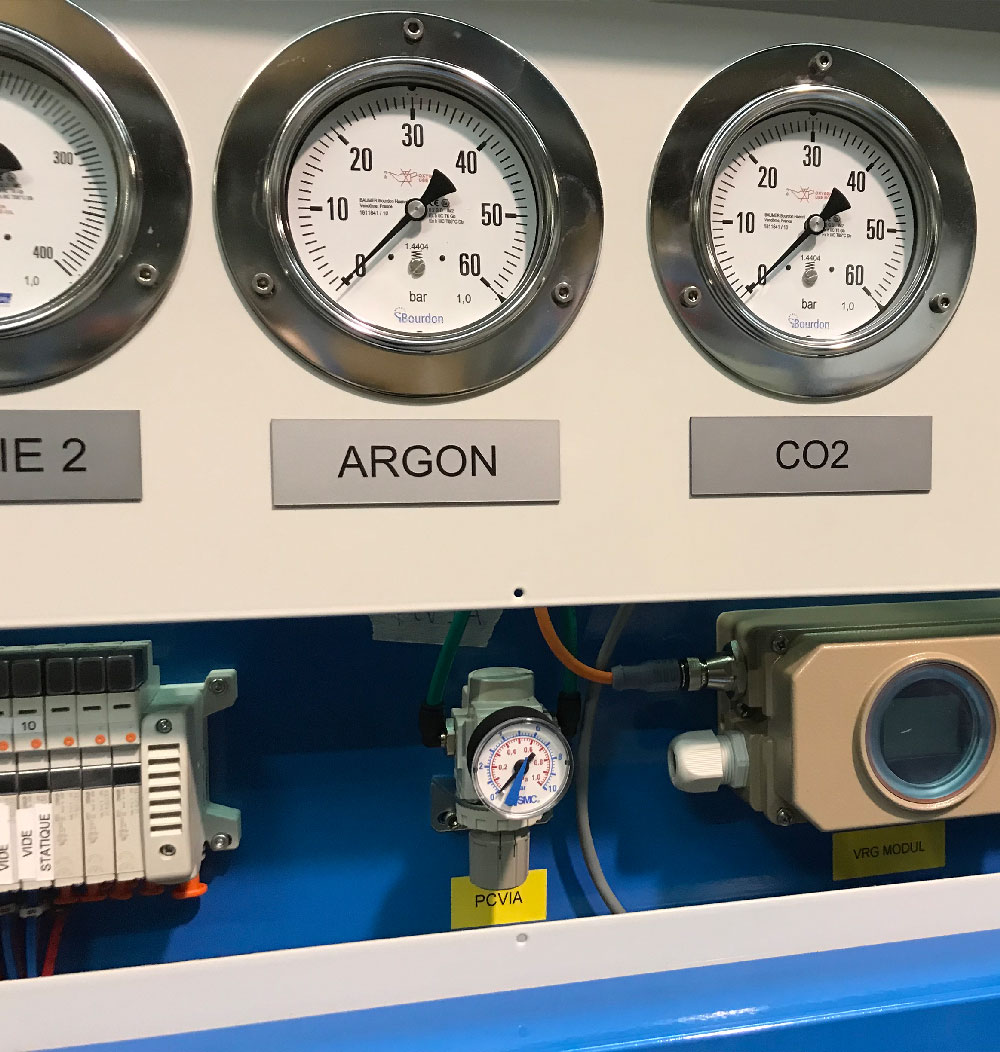

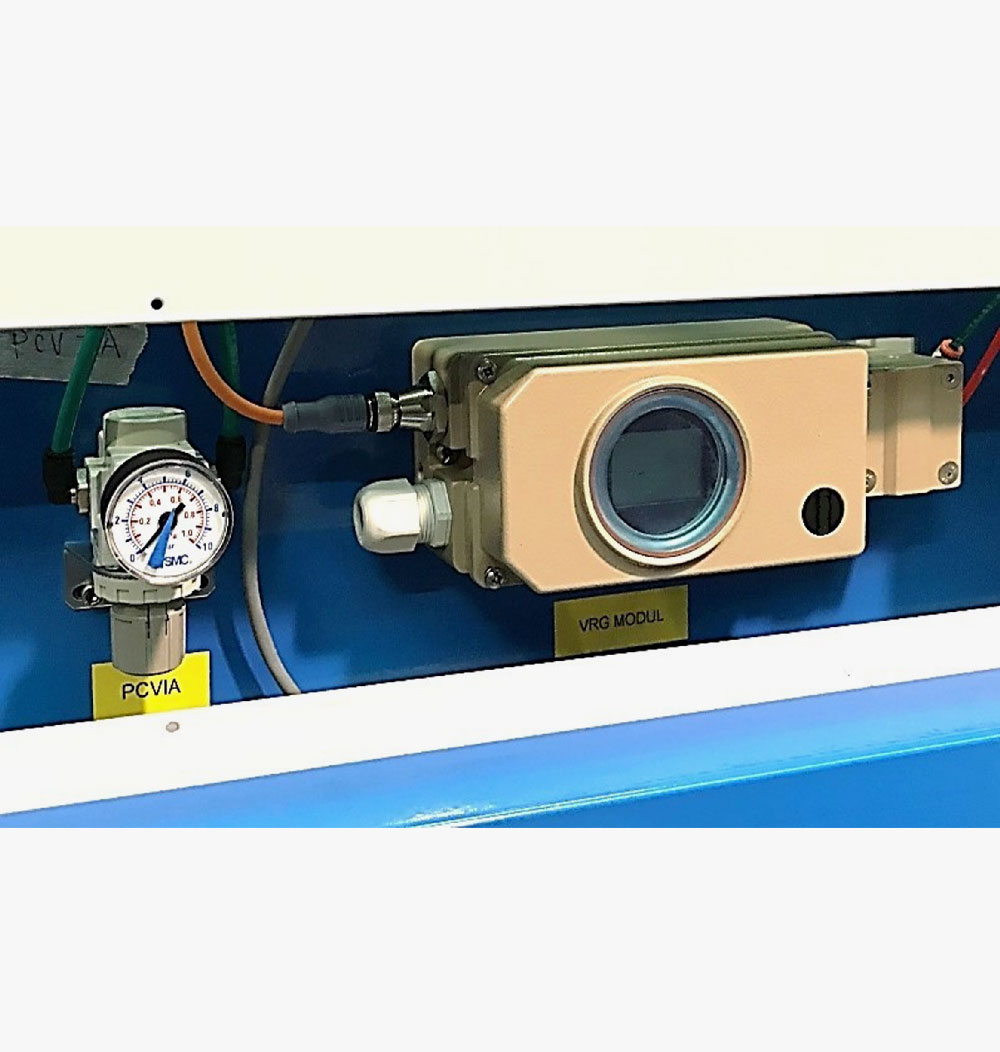

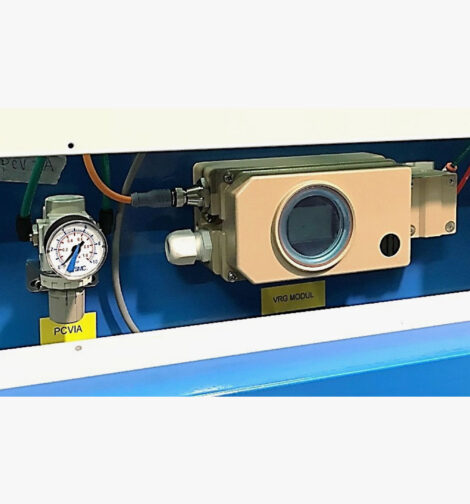

  • Atex compliant regulation module.
