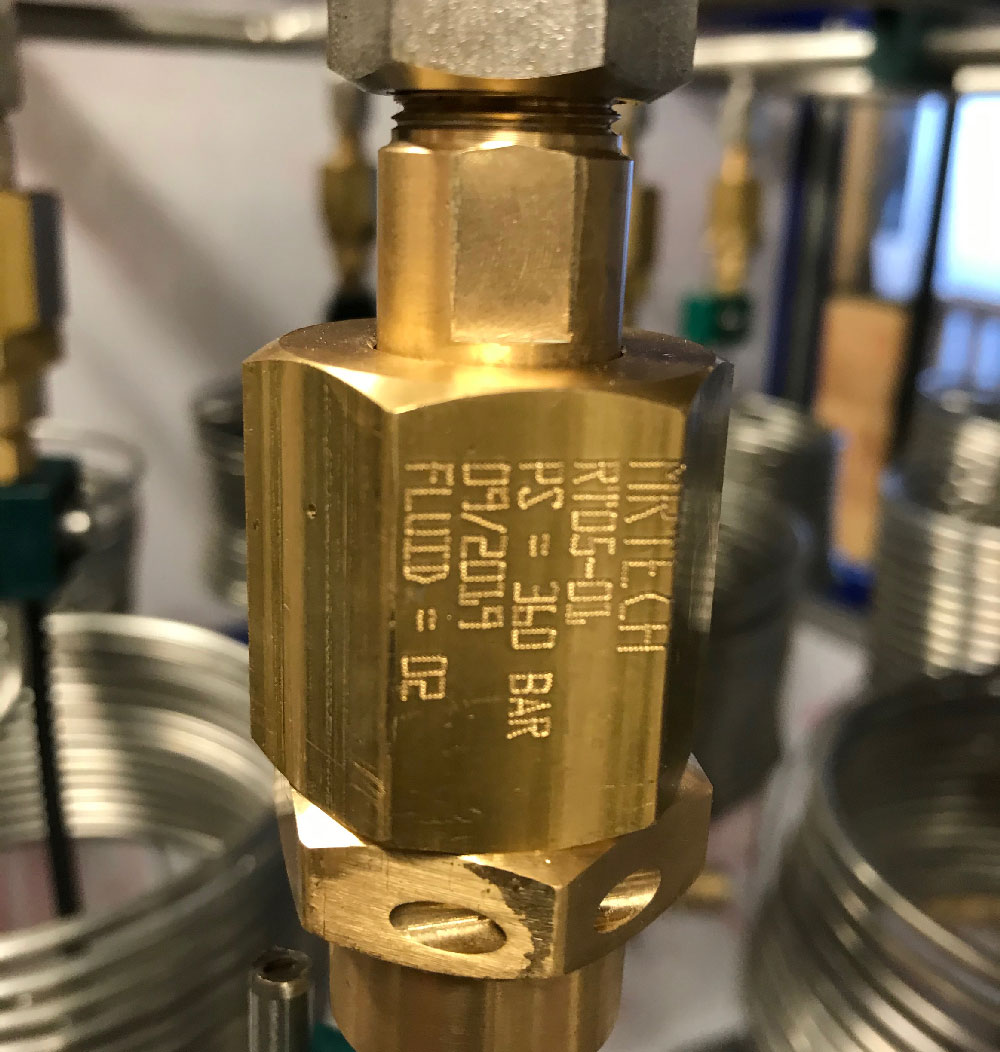

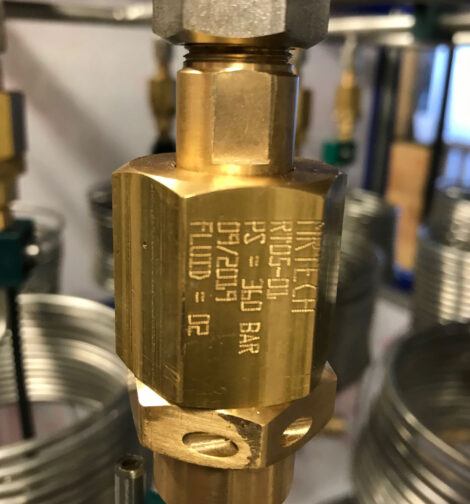

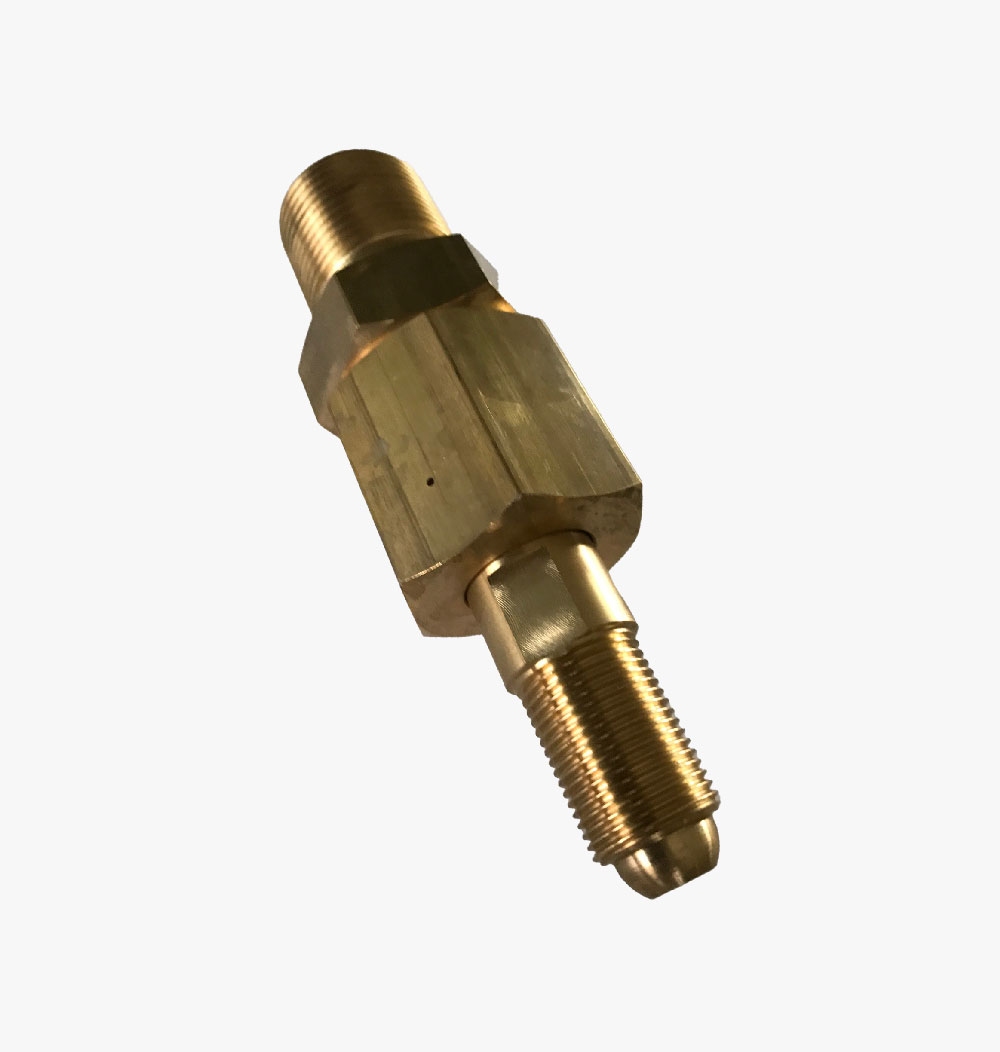

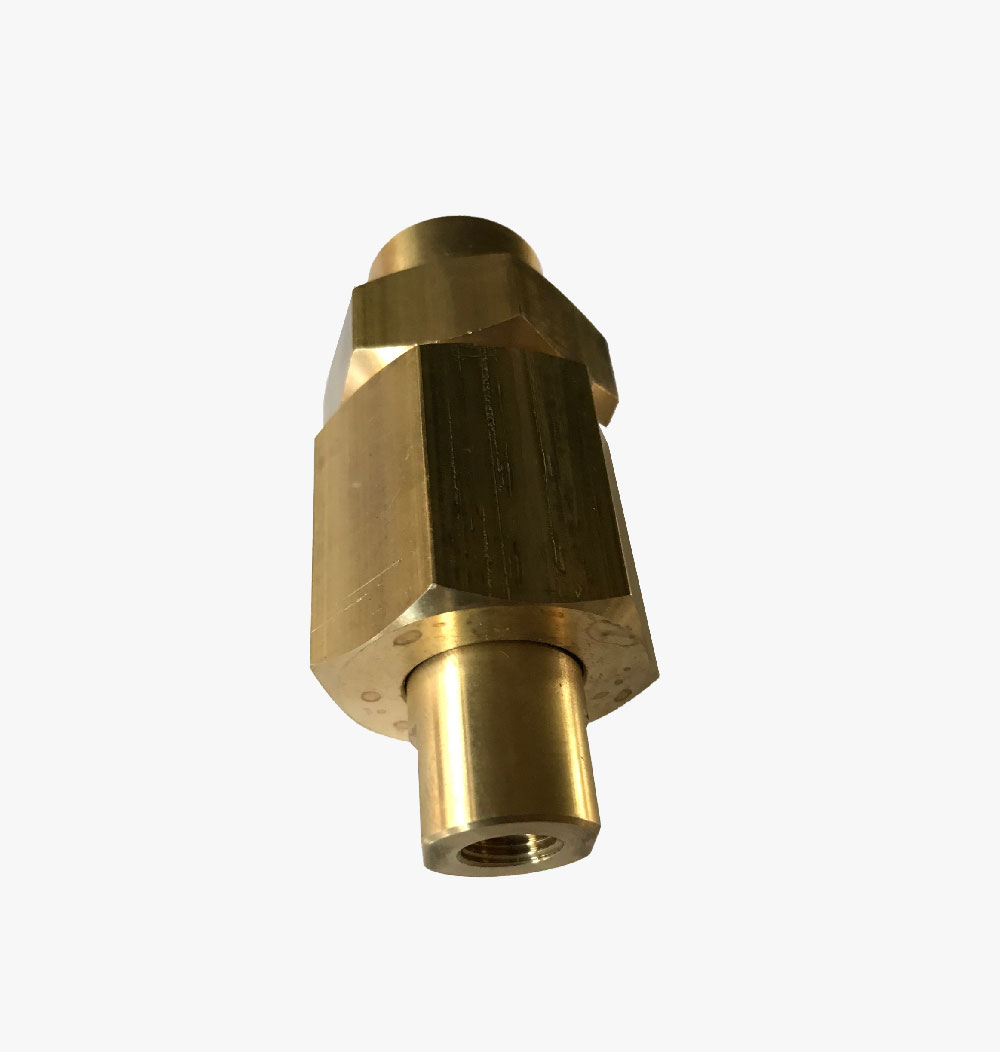

SWIVEL CONNECTORS

Pigtails - Flexible Hoses - Swivel Connectors
PDF File

Description

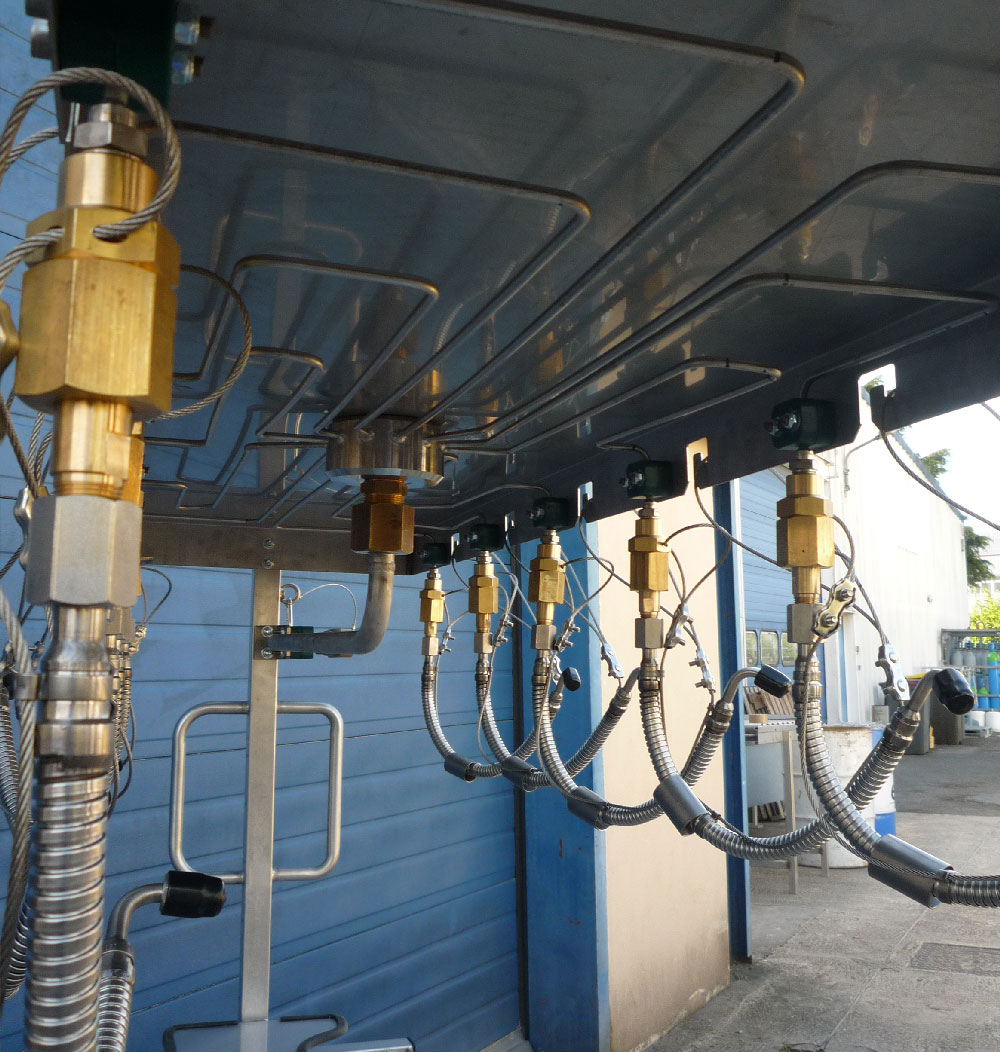

  • Installation of swivel connectors make easier the handling of flexible hoses and pigtails.
  • Increase the life cycle of flexible hoses.
  • Agreed for 360 bar oxygen adiabatic compressions in oxygen by CTE.

Working Conditions

  • Industrial gases: O2, H2; rare gases, inert gases and gas mixes, other fluid on request.
  • Medical gases: O2, N2O, air and mixes…
  • Service pressure range: from vacuum to 420 bar.
  • Working temperature range: -40°C/+80°C.

Technical Data

  • Brass or stainless steel construction.
  • O-ring following customer request.
  • Nominal diameter 3 to 15.

Connections

  • Any connectors following customer request.
Overall Dimensions (mm)
