TROLLEYS
Trolleys
Description

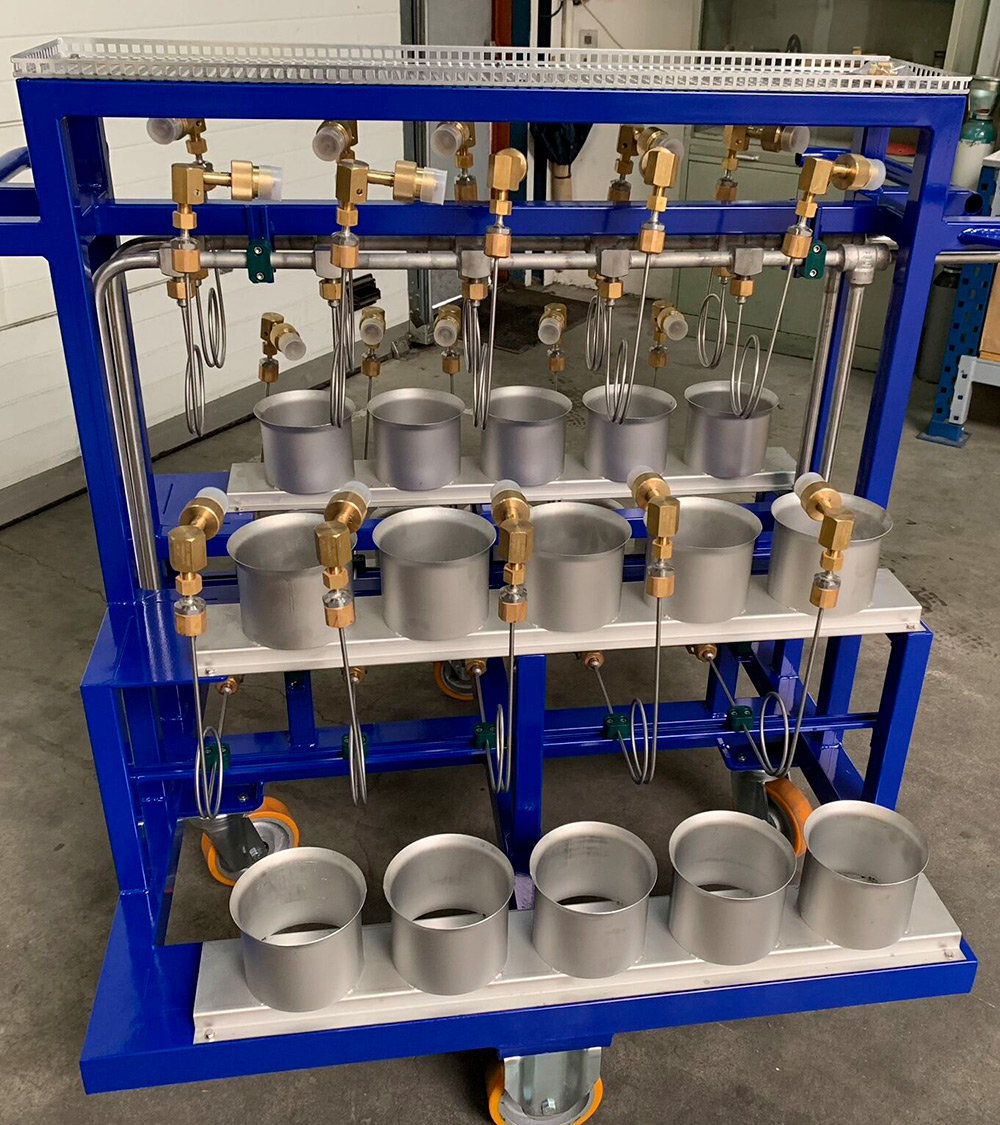

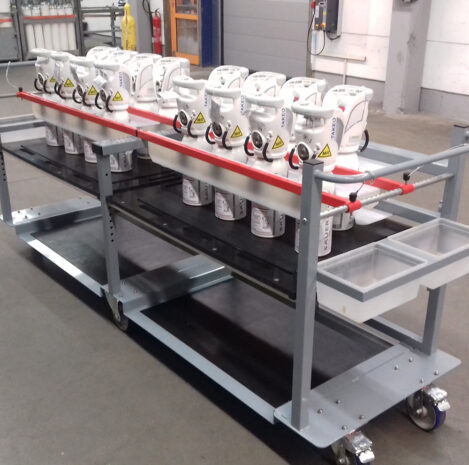

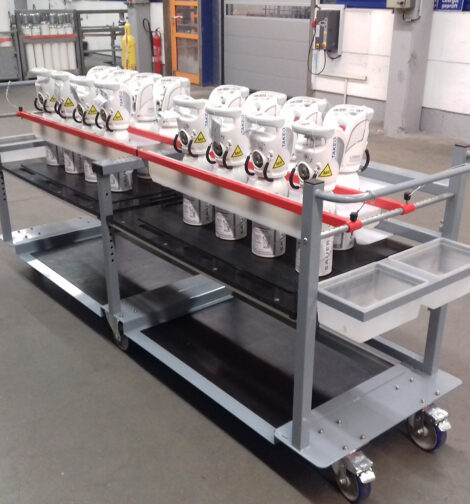

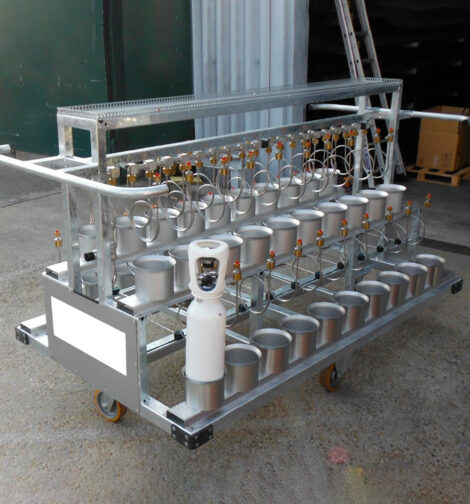

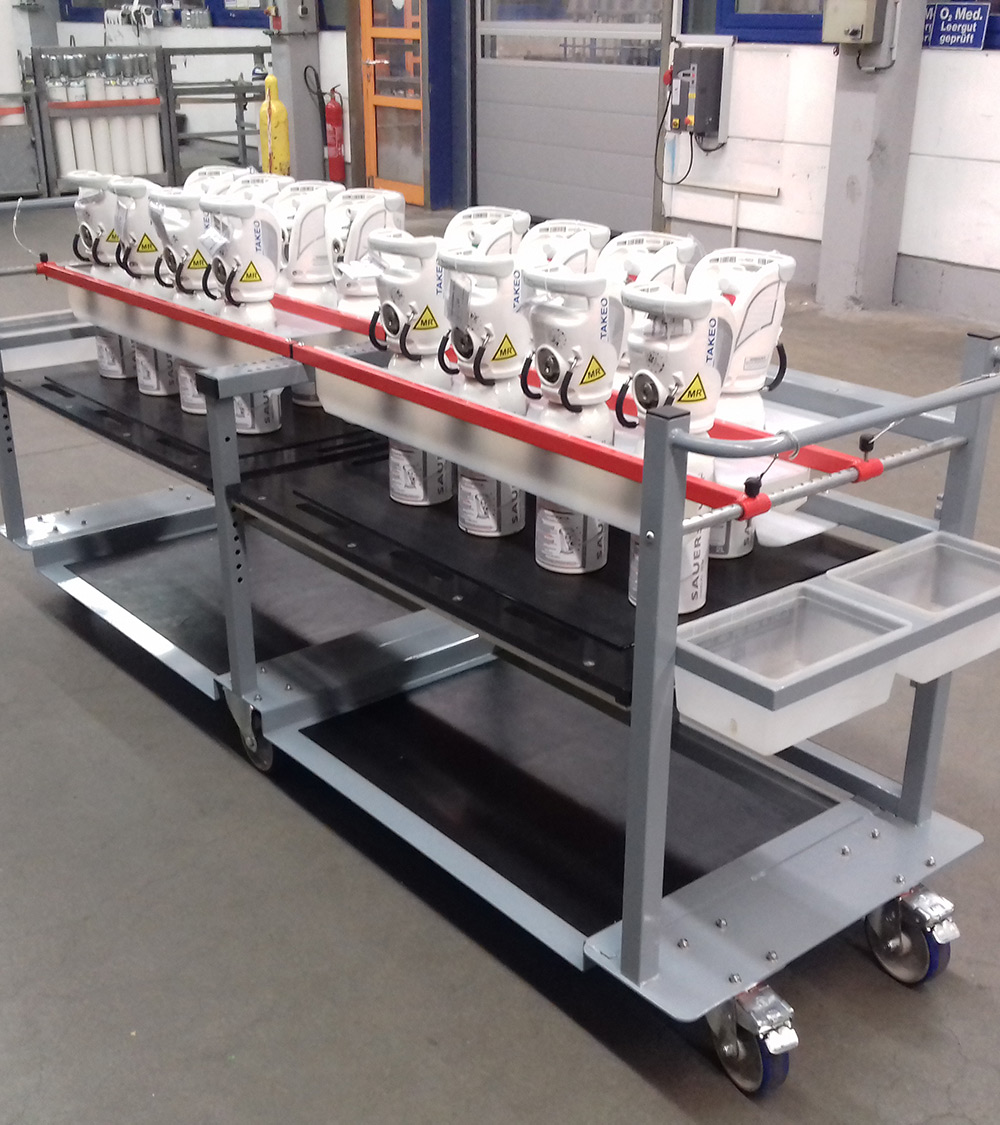

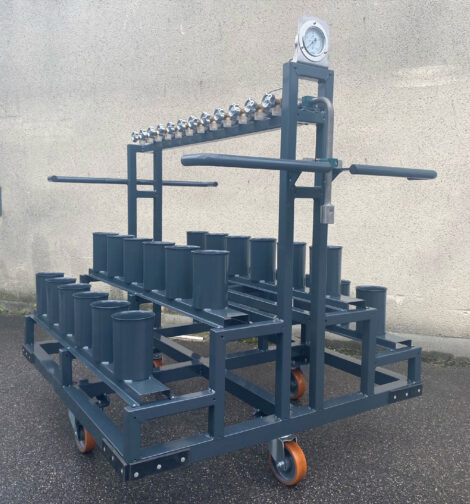

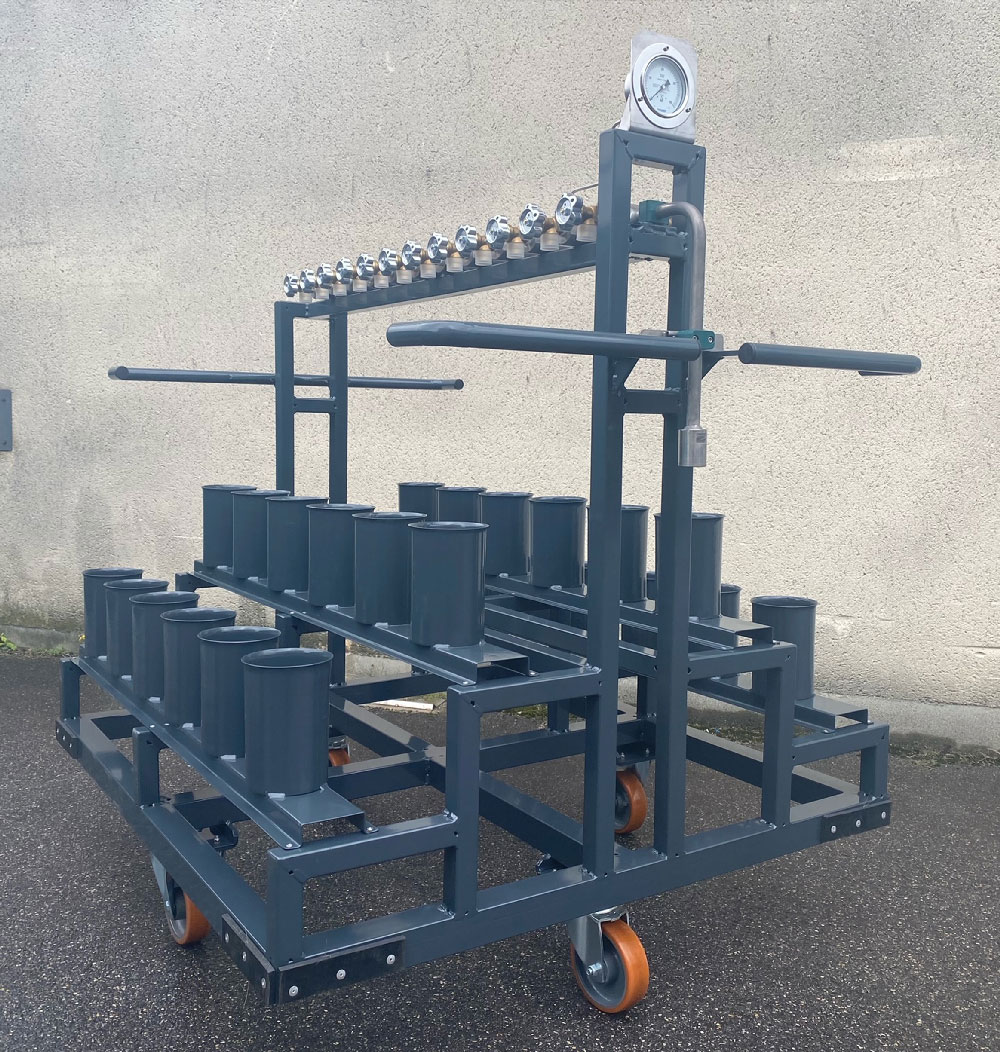

- From simple cards to fully equipped trolleys (ramp – pigtails – filling connectors).
- Ergonomics combined with customer needs.
- Usually 8 to 18 cylinders, 4 or 6 wheels
- Adjustable levels to match with the different cylinders sizes.
- Or adjustable manifold height.
- Ultra low bottom height to easily load large cylinders.
- Choice of wheels for better rolling.
- Frame : stainless steel or painted steel (colour upon customer request).
- Leak & pressure tests (version with ramp).
- Certificate of conformity after validation.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Service pressure : up to 420 bar (version with ramp).
- Working temperature : -40°C up to +80°C.
Options

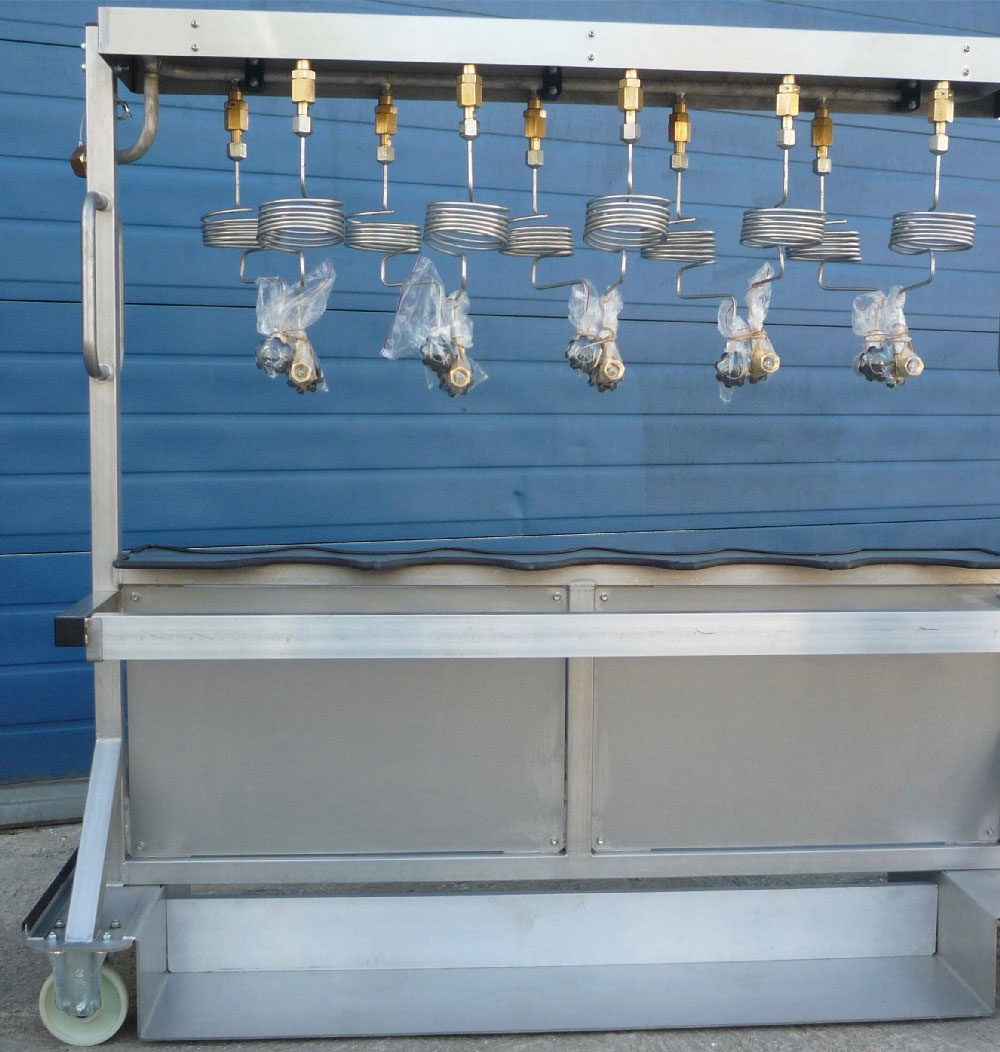

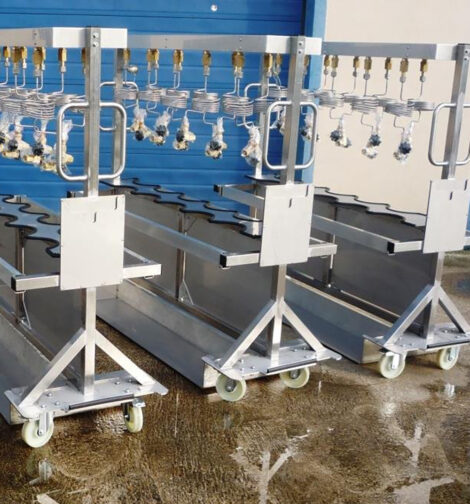

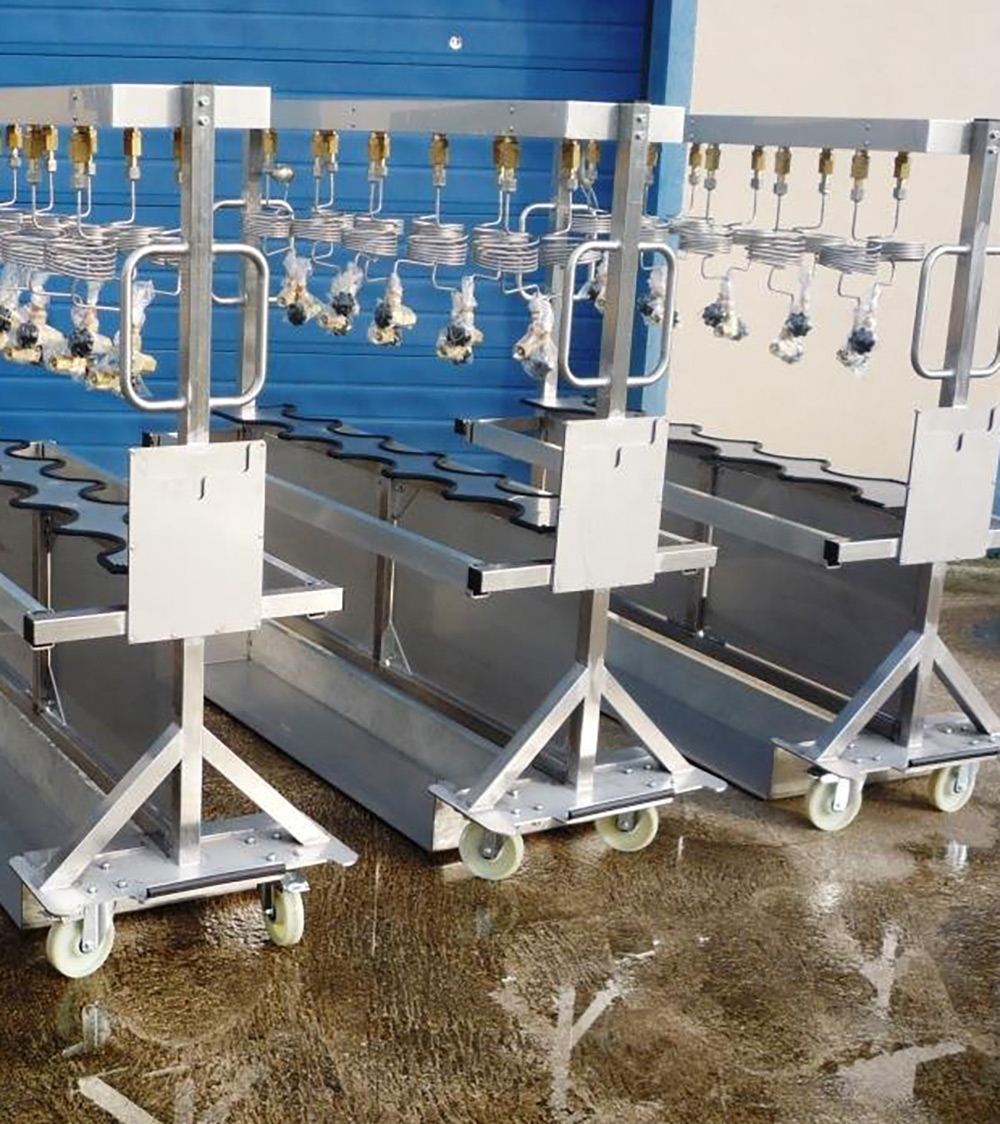

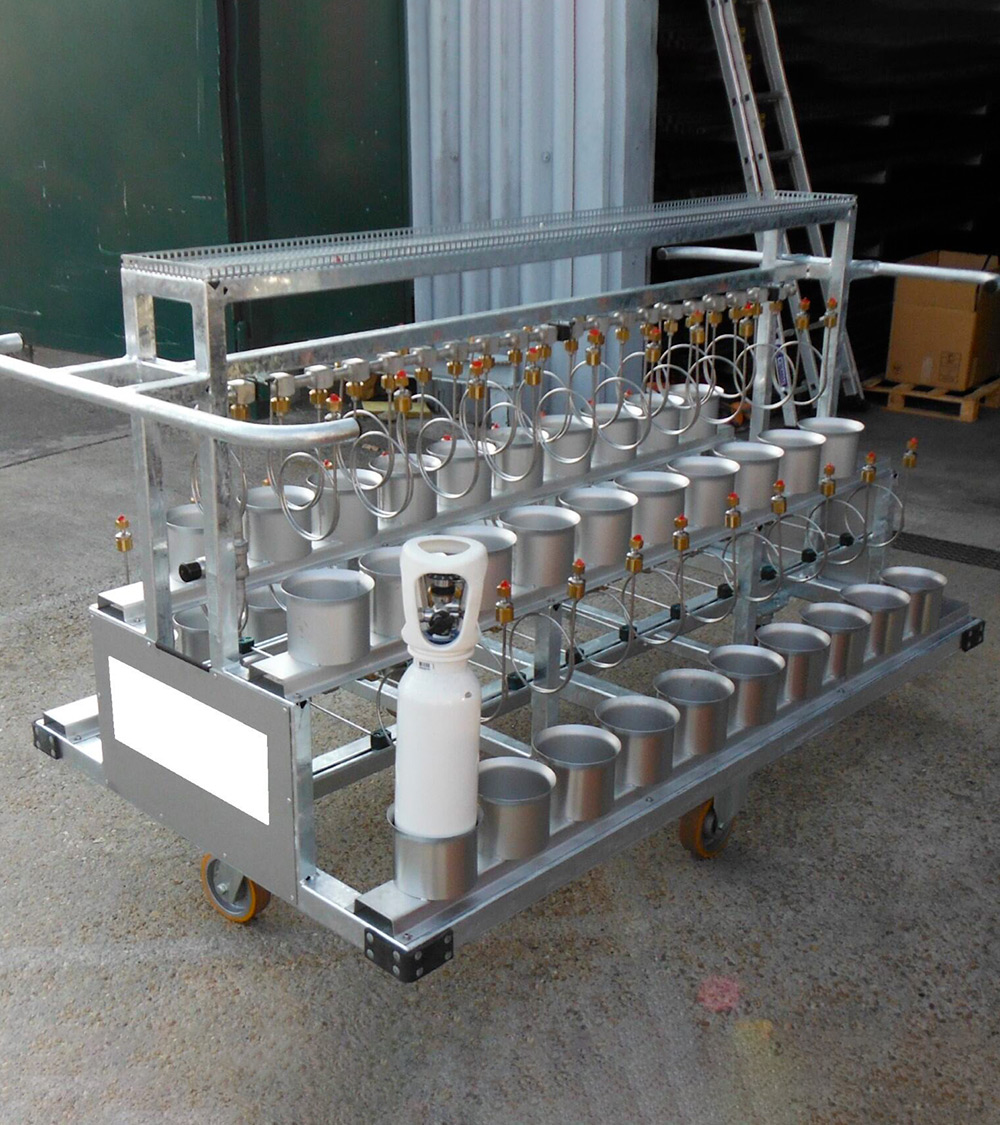

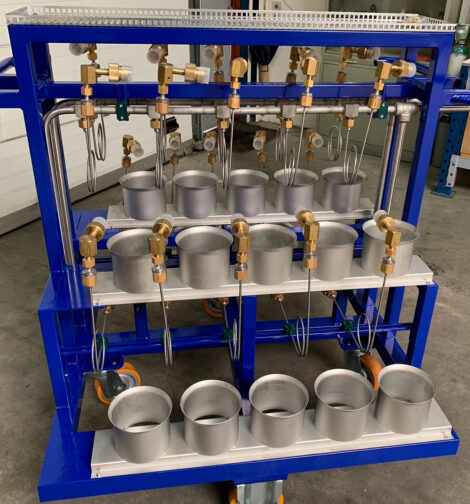

- Filling ramp equipped with swivel connectors, pigtails or flexible hoses, and filling connectors.
- Smooth shaped tube to maintain small cylinders.

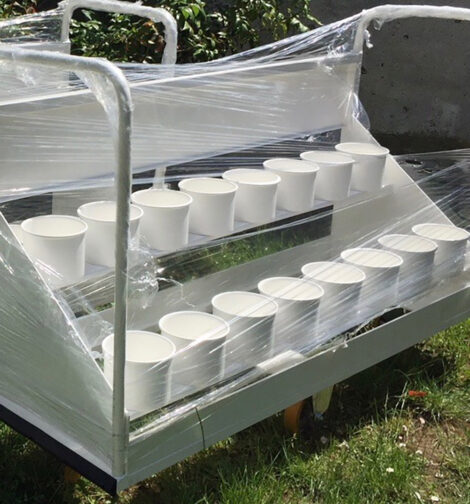

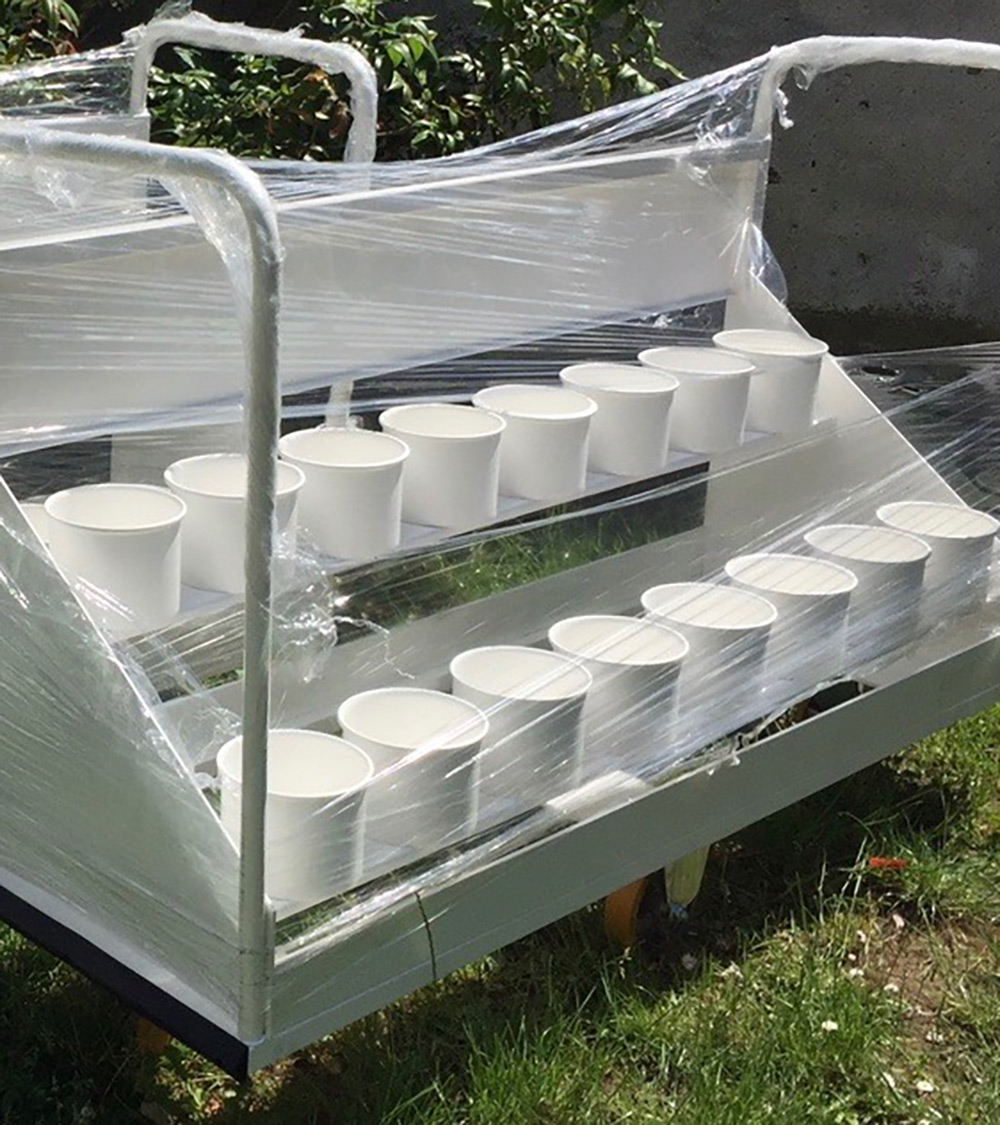

- Makrolon protection shells.
- Mobile filling unit equipped with makrolon protections (trolleys are driven inside).
