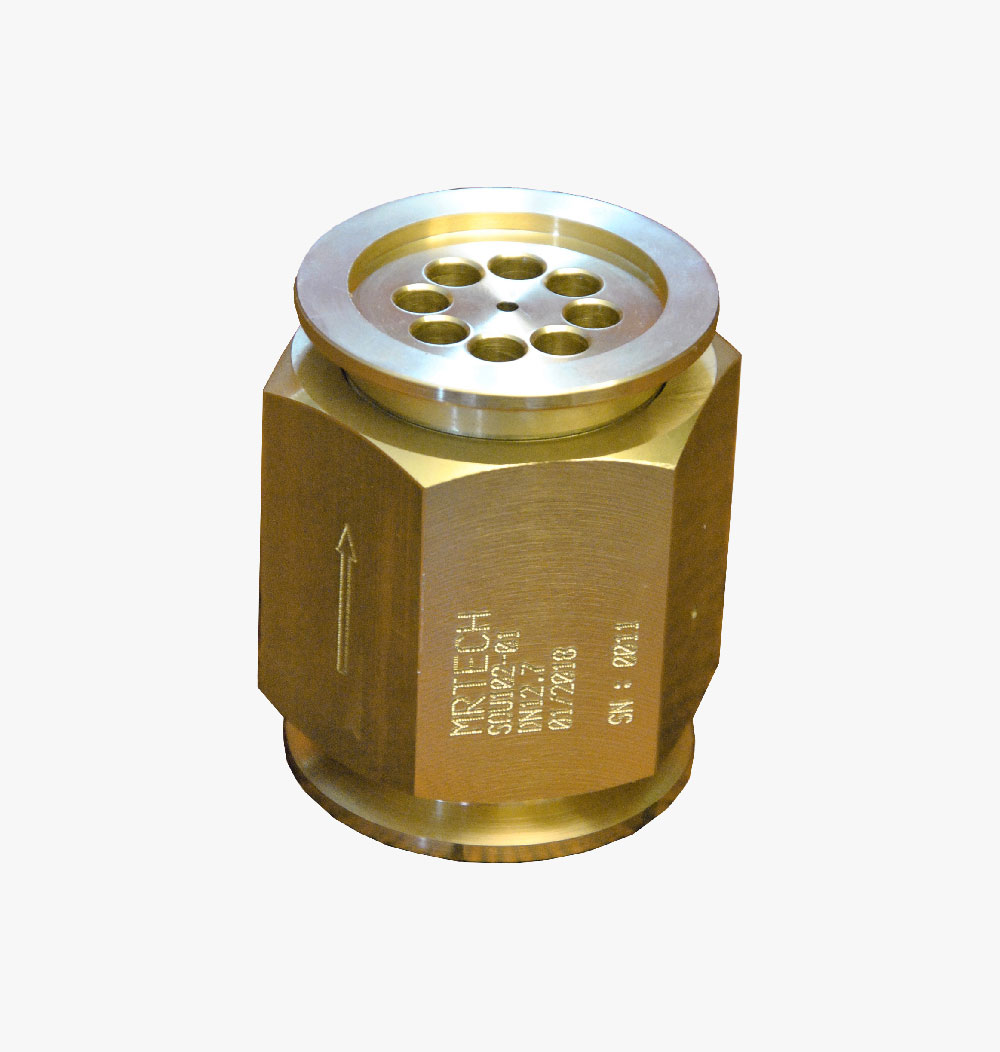

V22 SERIES
VACCUM SAFETY VALVES
Line Fittings
Description
- Vacuum line protection from overpressure.
- Vertical mounting.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Set pressure : 20 mbar above atmospheric pressure.
- Working temperature : -40°C up to +80°C.
Technical Data
- Inside diameter : 20 mm.
- Material : brass or stainless steel.
- Stainless steel or brass valve.
- Inside tightness : O Ring.
- O-Ring according to gas compatibility.
Connections
- 304 L Stainless steel welded connectors from ND15 to ND32
- Other connectors on request.
Options
- ATEX version.

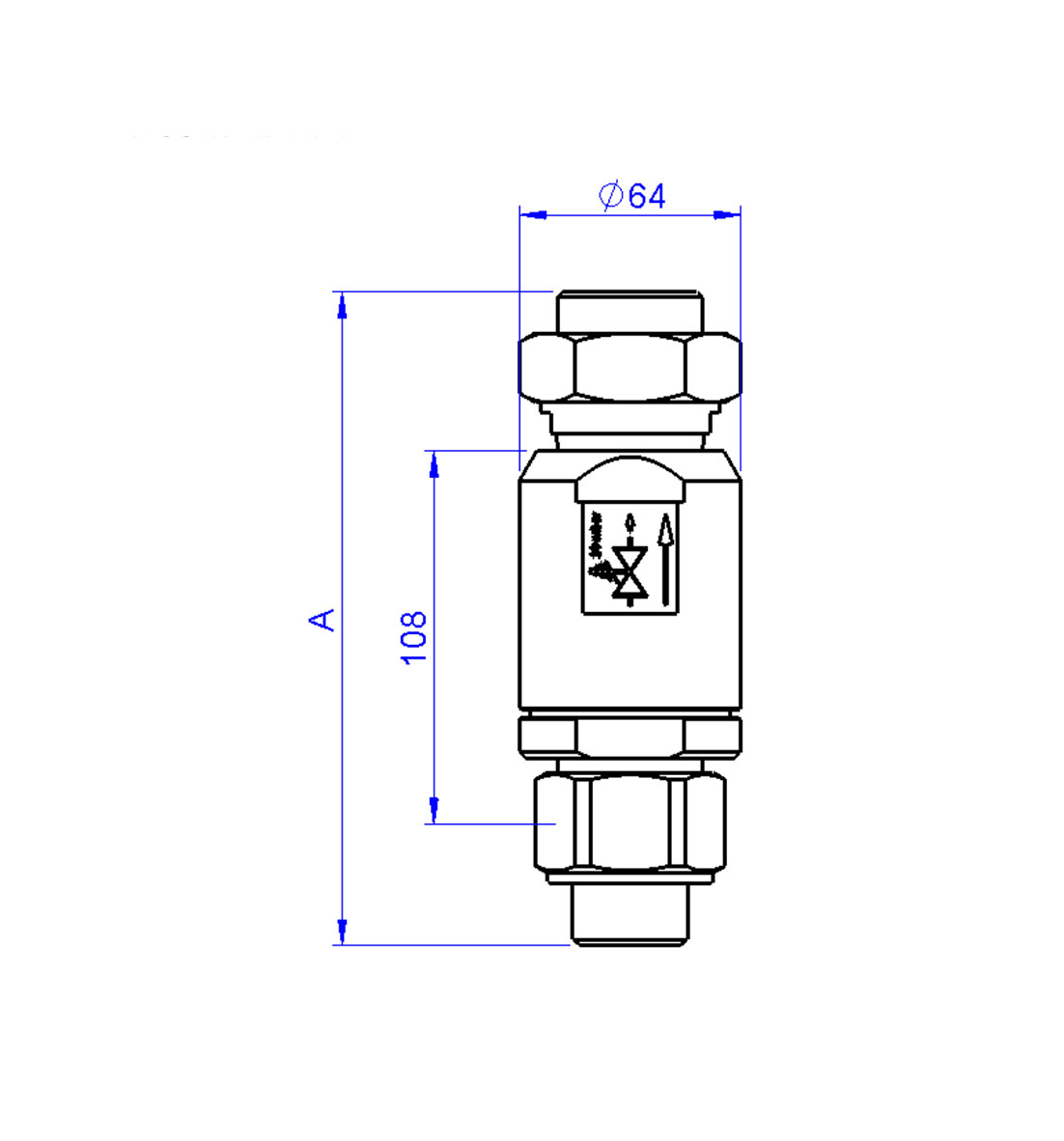

Overall Dimensions (mm)
