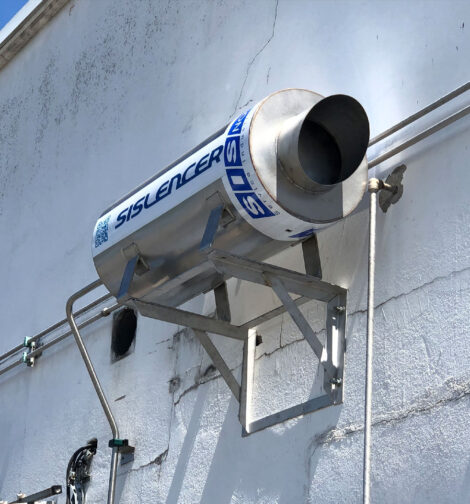

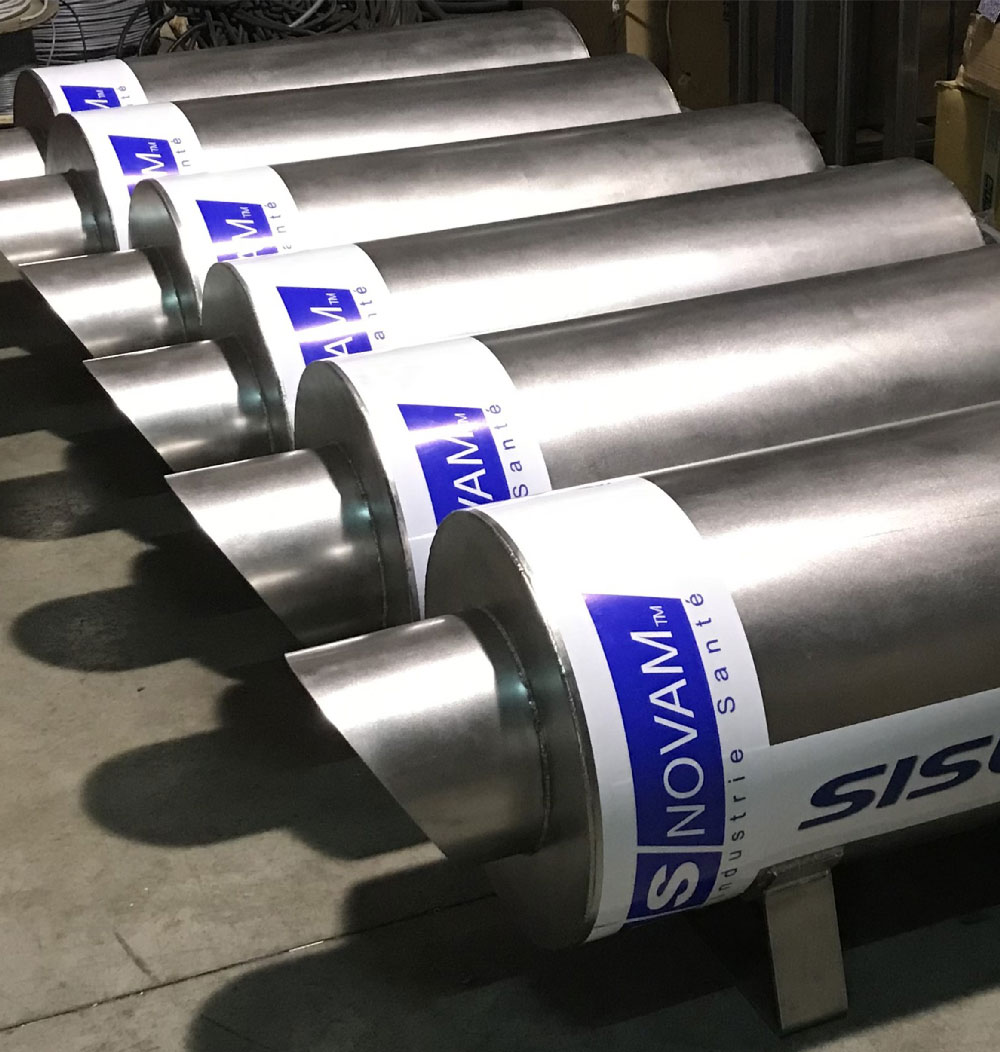

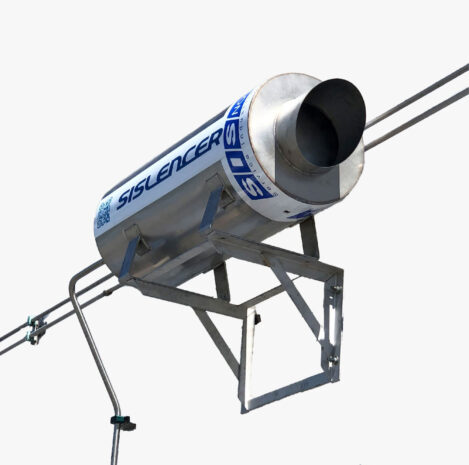

VENT LINE SILENCER
SISL Series
Line Fittings
Description
- Silencer for vent gas lines.
- Designed to reduce noise pollution during gas discharge into atmosphere : 75dB at 200 bar; 90 dB at 400 bar instead of 110-130dB without silencer
- Noise damper material : rockwool.
- Designed for oxidizing gases.
Working Conditions
- Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
- Medical gases : Oxygen, N20, Medical air…
- Service pressure : up to 420 bar – 8000 Nm3/h flowrate.
- Working temperature : -40°C up to +80°C.
Connections
- Inlet Flange : Dn80 – Pn10/16
Options
- Stainless Steel Or Painted Steel.
- Wall Mounting Support.
- Collector For Venting Lines.
Overall Dimensions (mm)
