FI15 SERIES

ND15 FILTER
Filters
PDF File

Description

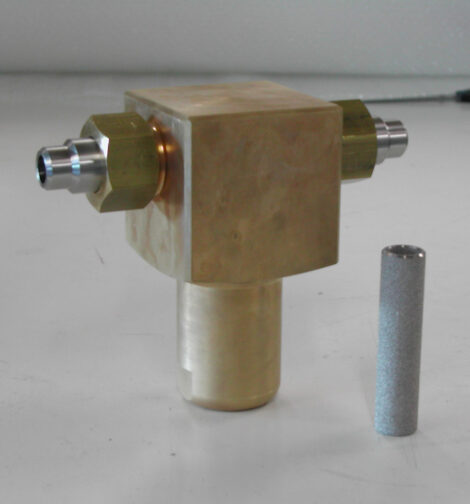

  • Very easy change of the Monel filter cartridge (no need to dismount the filter from the line).
  • Flow characteristics optimized.
  • Oxygen adiabatic compression tests performed by CTE at 360 bar.

Working Conditions

  • Industrial gases : Oxygen, Hydrogen, Neutral and Rare gases, others on request.
  • Medical gases : Oxygen, N20, Medical air…
  • Working pressure : from vacuum up to 360 bar.
  • Working temperature : -40°C up to +80°C.

Technical Data

  • Nominal diameter : 15 mm.
  • Material : brass.
  • 20 or 60 micron filtration.
  • O-Ring according to customer needs.

Connections

  • Stainless steel welded connectors 1/2” Sch 80, 3/4” Sch 160, others on request.
  • Monel welded connectors as an option.
  • Other connectors on request.

Options

  • Brass connectors, screwed connectors.
  • Specific connectors for SisNovam valves.
  • ATEX version.
Overall Dimensions (mm)
